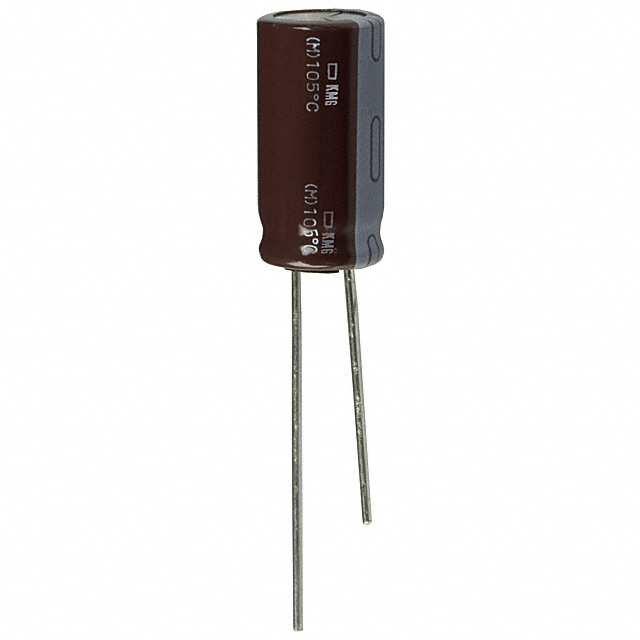

KMG50VB471M10X20LL
ObsoleteChemi-Con
CAP ALUMINUM LYTIC 470UF 50V 20% (10 X 20MM) RADIAL 5MM 0.423 OHM 530MA 1000H 105C
Deep-Dive with AI
Search across all available documentation for this part.
KMG50VB471M10X20LL
ObsoleteChemi-Con
CAP ALUMINUM LYTIC 470UF 50V 20% (10 X 20MM) RADIAL 5MM 0.423 OHM 530MA 1000H 105C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KMG50VB471M10X20LL |
|---|---|
| Applications | General Purpose |
| Capacitance | 470 µF |
| ESR (Equivalent Series Resistance) | 423 mOhm |
| Height - Seated (Max) [Max] [z] | 20 mm |
| Height - Seated (Max) [Max] [z] | 0.787 " |
| Lead Spacing | 5 mm |
| Lead Spacing | 0.197 in |
| Lifetime @ Temp. | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Can |
| Polarization | Polar |
| Ripple Current @ High Frequency | 795 mA |
| Ripple Current @ Low Frequency | 530 mA |
| Size / Dimension [diameter] | 10 mm |
| Size / Dimension [diameter] | 0.394 in |
| Tolerance | 20 % |
| Voltage - Rated | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
KMG50VB471M10X20LL
470 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 423mOhm @ 120Hz 1000 Hrs @ 105°C
