Technical Specifications
Parameters and characteristics for this part
| Specification | ADT-PC-MTPLC-OM3F8-PAQ-10M |
|---|---|
| 1st Connector | MTP-12 Female |
| 2nd Connector | LC/UPC |
| Cable Diameter [diameter] | 2 mm |
| Cable Diameter [diameter] | 0.08 in |
| Cable Type | Break-Out |
| Color - Connectors | Aqua |
| Features | Plenum |
| Fiber Type | 52/125 |
| Insertion Loss | 0.5 dB |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Length - Overall [x] | 10 m |
| Length - Overall [x] | 32.8 ft |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Ratings | OFNP |
| Return Loss | 35 dB |
| Type | Multimode, OM3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 98.69 | |
| 10 | $ 85.71 | |||
Description
General part information
ADT-PC-MTPLC-OM3F8-PAQ-10M

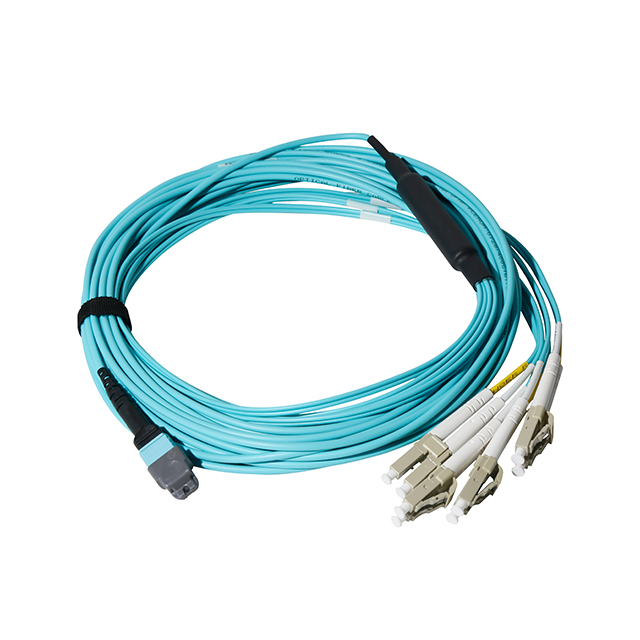

Cable Fiber Optic MTP-12 Female To LC/UPC 52/125 32.8' (10.0m)
