Technical Specifications
Parameters and characteristics for this part
| Specification | 0HEV040.ZXPCBL |
|---|---|
| Applications | Lift Trucks |
| Current Rating (Amps) | 40 A |
| DC Cold Resistance | 0.002 Ohms |
| Fuse Type | Cartridge |
| Melting I²t | 1495 |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5AG, (Midget), w/PC Pins |
| Package / Case [x] | 10 mm |
| Package / Case [y] | 38 mm |
| Size / Dimension [diameter] | 0.406 in |
| Size / Dimension [diameter] | 10.3 mm |
| Size / Dimension [x] | 1.532 " |
| Size / Dimension [x] | 38.9 mm |
| Voltage Rating - DC | 425 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

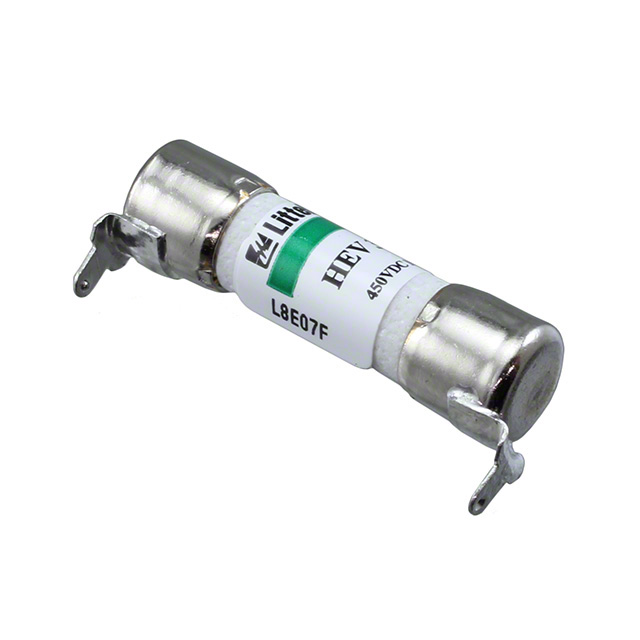

0HEV040.ZXPCBL
40A 425 VDC Fuse Cartridge Through Hole
