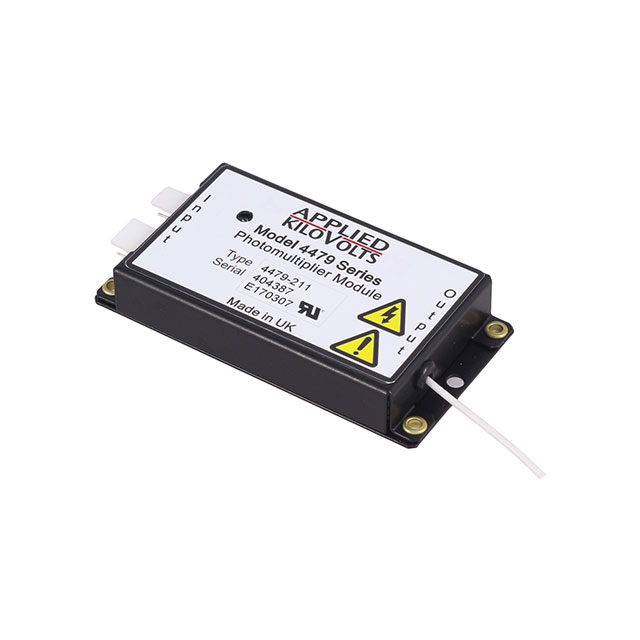

4479-210
ActiveApplied Kilovolts Ltd.
DC/DC CONVERTER -1000V 2W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4479-210
ActiveApplied Kilovolts Ltd.
DC/DC CONVERTER -1000V 2W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4479-210 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UL |
| Current - Output (Max) [Max] | 2 mA |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] [custom] | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Power (Watts) | 2 W |
| Size / Dimension [x] | 3.75 in |
| Size / Dimension [x] | 95.2 mm |
| Size / Dimension [y] | 49 mm |
| Size / Dimension [y] | 1.93 in |
| Size / Dimension [z] | 0.59 in |
| Size / Dimension [z] | 15 mm |
| Type | Enclosed, High Voltage |
| Voltage - Input (Max) [Max] | 28 V |
| Voltage - Input (Min) [Min] | 22 V |
| Voltage - Output 1 | -1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 522.21 | |
| 5 | $ 493.92 | |||
Description
General part information
4479-210
Enclosed, High Voltage DC DC Converter 1 Output -1000V 2mA 28V Input
