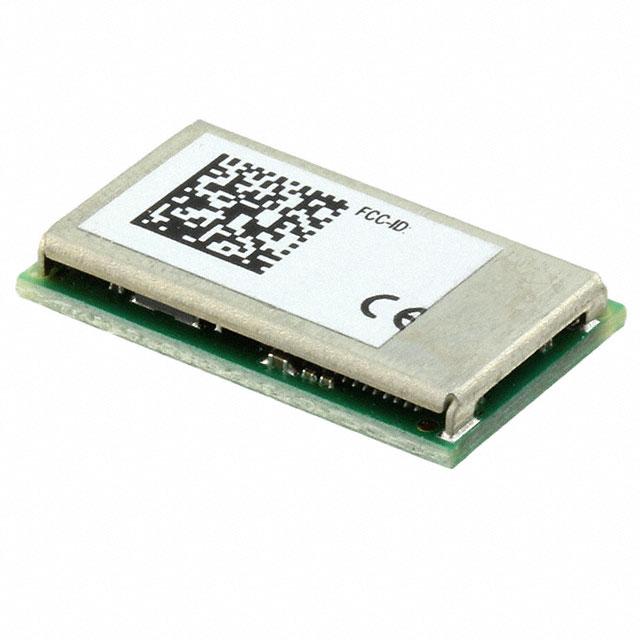

600013
ActiveDresden Elektronik
RF TXRX MODULE 802.15.4 SMD
Deep-Dive with AI
Search across all available documentation for this part.
600013
ActiveDresden Elektronik
RF TXRX MODULE 802.15.4 SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 600013 |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Receiving | 22 mA |
| Data Rate | 2 Mbps |
| Frequency | 2.4 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 23 dBmW |
| Protocol | Zigbee®, 6LoWPAN |
| RF Family/Standard | 802.15.4 |
| Sensitivity | -104 dBm |
| Serial Interfaces | I2C, JTAG, UART, SPI |
| Utilized IC / Part | CC2564 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 28.81 | |
| 10 | $ 26.60 | |||
| 25 | $ 24.38 | |||
| 100 | $ 22.53 | |||
| 250 | $ 21.43 | |||
| Digi-Reel® | 1 | $ 28.81 | ||
| 10 | $ 26.60 | |||
| 25 | $ 24.38 | |||
| 100 | $ 22.53 | |||
| 250 | $ 21.43 | |||
| Strip | 500 | $ 19.95 | ||
Description
General part information
600013
802.15.4 6LoWPAN, Zigbee® Transceiver Module 2.4GHz Antenna Not Included Surface Mount
Documents
Technical documentation and resources
No documents available
