36540
UnknownSchott Corporation
TRANSF T1/E1 1.26CT:1 EE5 SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 36540 |
|---|---|
| Height - Seated (Max) | 6.35 mm |
| Height - Seated (Max) [Max] | 0.25 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 6.1 mm |
| Size / Dimension [x] | 0.24 in |
| Size / Dimension [y] | 6.35 mm |
| Size / Dimension [y] | 0.25 in |
| Transformer Type | T1/E1 |
| Transformer Type | EE5 |
| Turns Ratio - Primary:Secondary | 1.26CT:1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 177.07 | |
| 10 | $ 164.09 | |||
| 25 | $ 158.19 | |||
| 50 | $ 157.00 | |||
| Cut Tape (CT) | 1 | $ 1.95 | ||
| 10 | $ 1.90 | |||
Description
General part information
36540

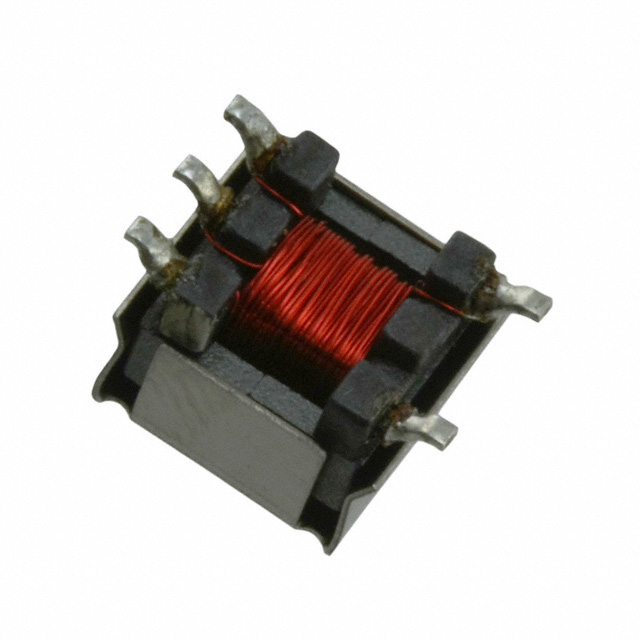

T1/E1 (EE5) Pulse Transformer 1.26CT:1 Surface Mount
Documents
Technical documentation and resources
No documents available
