ROB-18591
ActiveActuonix Motion Devices Inc

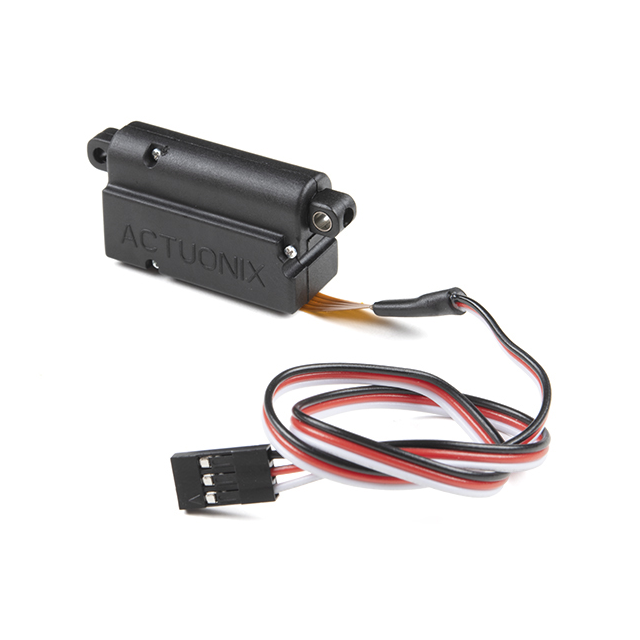

ACTUONIX PQ12-100-6-R MICRO-ACTU
Deep-Dive with AI
Search across all available documentation for this part.
ROB-18591
ActiveActuonix Motion Devices Inc
ACTUONIX PQ12-100-6-R MICRO-ACTU
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ROB-18591 |
|---|---|
| Accuracy | 0.1 mm |
| Construction | Ball Screw |
| Duty Cycle | 20 % |
| Features | Limit Switches |
| Feedback Type | Potentiometer |
| Gear Reduction Ratio | 100 |
| Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Load Force (Dynamic) | 8.99 lbf |
| Load Force (Dynamic) | 40 N |
| Load Force (Static) | 11.24 lbf |
| Load Force (Static) | 50 N |
| Motor Type | Brushed |
| Operating Temperature [Max] [custom] | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Speed | 0.39 in/s |
| Speed | 10 mm/s |
| Stroke Length | 0.787 in |
| Stroke Length | 20 mm |
| Type | Linear Actuator |
| Voltage - Rated | 6 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 94.38 | |
Description
General part information
ROB-18591
ACTUONIX PQ12-100-6-R MICRO-ACTU
Documents
Technical documentation and resources
