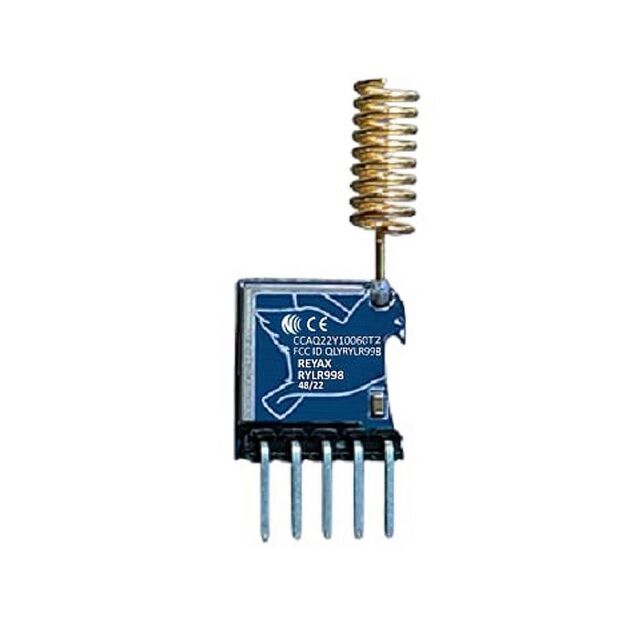

RYLR998
ActiveREYAX
RF TXRX MOD ISM<1GHZANT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RYLR998
ActiveREYAX
RF TXRX MOD ISM<1GHZANT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RYLR998 |
|---|---|
| Antenna Type | Antenna Included |
| Current - Receiving | 17.5 mA |
| Current - Transmitting | 140 mA |
| Data Rate | 115.2 kbps |
| Frequency [Max] | 960 MHz |
| Frequency [Min] | 820 MHz |
| Modulation | LoRa |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 22 dBm |
| RF Family/Standard | General ISM < 1GHz |
| Sensitivity | -129 dBm |
| Serial Interfaces | UART |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Case | 1 | $ 12.60 | |
| 10 | $ 11.80 | |||
| 30 | $ 11.20 | |||
| 100 | $ 11.00 | |||
| 500 | $ 10.50 | |||
Description
General part information
RYLR998
General ISM < 1GHz Proprietary Transceiver Module 820MHz ~ 960MHz Antenna Included Chassis Mount
