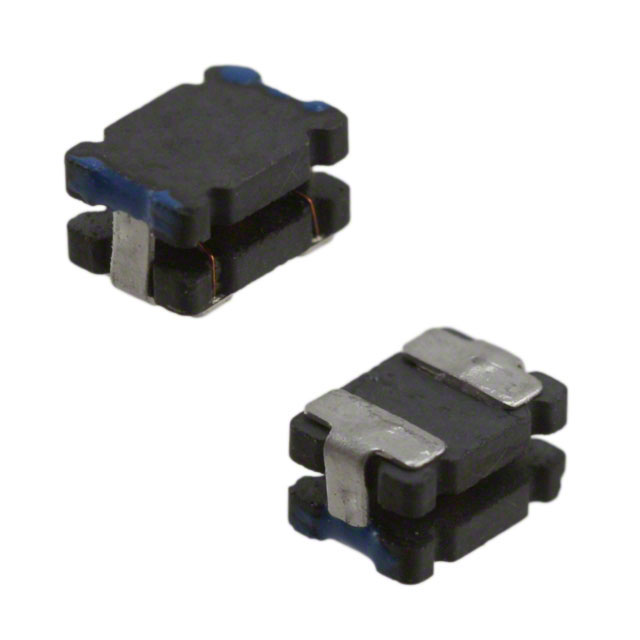

300LS-1R5K=P2
ObsoleteToko America Inc.
FIXED IND 1.5UH 230MA 490 MOHM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
300LS-1R5K=P2
ObsoleteToko America Inc.
FIXED IND 1.5UH 230MA 490 MOHM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 300LS-1R5K=P2 |
|---|---|
| Current Rating (Amps) | 0.23 A |
| DC Resistance (DCR) [Max] | 490 mOhm |
| Frequency - Self Resonant | 105 MHz |
| Height - Seated (Max) [Max] [z] | 3.2 mm |
| Height - Seated (Max) [Max] [z] | 0.126 in |
| Inductance | 1.5 µH |
| Inductance Frequency - Test | 7.96 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Package / Case | 1812 (4532 Metric) |
| Q @ Freq | 7.96 MHz, 50 |
| Shielding | Unshielded |
| Size / Dimension [x] | 0.177 in |
| Size / Dimension [x] | 4.5 mm |
| Size / Dimension [y] | 3.2 mm |
| Size / Dimension [y] | 0.126 " |
| Tolerance | 10 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.33 | |
Description
General part information
300LS-1R5K=P2
1.5 µH Unshielded Wirewound Inductor 230 mA 490mOhm Max 1812 (4532 Metric)
