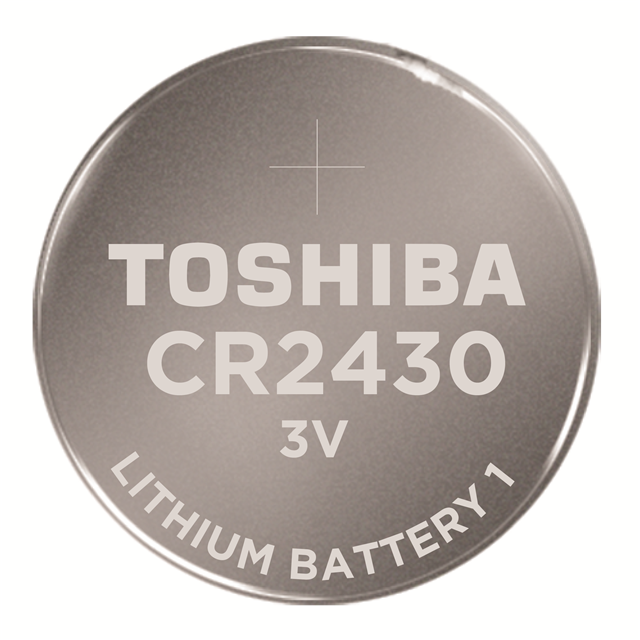

CR2430
ActiveToshiba Lifestyle Products
BATTERY LITHIUM 3V COIN 24.5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CR2430
ActiveToshiba Lifestyle Products
BATTERY LITHIUM 3V COIN 24.5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CR2430 |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size | 24.5 mm |
| Battery Chemistry | Lithium Manganese Dioxide |
| Capacity | 300 mAh |
| Size / Dimension [diameter] | 24.5 mm |
| Size / Dimension [diameter] | 0.97 " |
| Size / Dimension [z] | 0.12 in |
| Size / Dimension [z] | 3 mm |
| Storage/Refrigeration Temperature [Max] | 65 °C |
| Storage/Refrigeration Temperature [Min] | -4 °F |
| Termination Style | Requires Holder |
| Voltage - Rated | 3 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 5 | $ 0.56 | |
| 10 | $ 0.55 | |||
| 50 | $ 0.54 | |||
| 100 | $ 0.53 | |||
| 500 | $ 0.52 | |||
| 1000 | $ 0.50 | |||
| 5000 | $ 0.48 | |||
| Strip | 8 | $ 0.97 | ||
| 8 | $ 1.35 | |||
| 96 | $ 1.30 | |||
| 96 | $ 0.87 | |||
| 160 | $ 0.85 | |||
| 160 | $ 1.25 | |||
| 480 | $ 0.84 | |||
| 480 | $ 1.18 | |||
| 960 | $ 0.80 | |||
| 960 | $ 1.09 | |||
| Tray | 1 | $ 1.19 | ||
| 10 | $ 0.99 | |||
| 50 | $ 0.87 | |||
| 100 | $ 0.82 | |||
| 200 | $ 1.21 | |||
| 250 | $ 0.76 | |||
| 400 | $ 1.14 | |||
| 500 | $ 0.72 | |||
| 600 | $ 1.05 | |||
| 1000 | $ 0.68 | |||
| 2000 | $ 1.03 | |||
| 2500 | $ 0.63 | |||
| 5000 | $ 0.60 | |||
Description
General part information
CR2430
Coin, 24.5mm Lithium Manganese Dioxide 3 V Battery Non-Rechargeable (Primary)
