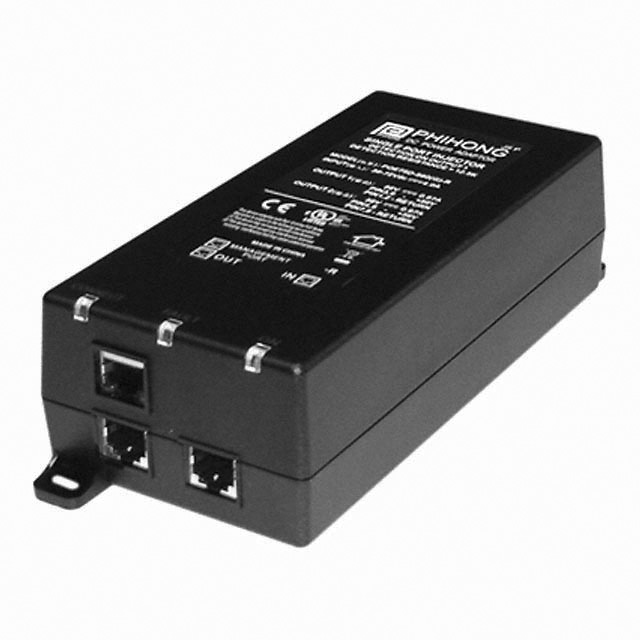

POE75U-1UP-N
ObsoletePhihong USA
POE INJECTOR 75W 56V DESKTOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
POE75U-1UP-N
ObsoletePhihong USA
POE INJECTOR 75W 56V DESKTOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | POE75U-1UP-N |
|---|---|
| Approval Agency | cULus, CE |
| Compliance | IEEE802.3af |
| Current - Output | 670 mA |
| Data Rate | 10 Mbps, 1000 Mbps, 100 Mbps |
| Efficiency | 80 % |
| Features | SCP, OCP, OVP |
| Input Connector | IEC 320-C14 |
| Mounting Type | Desktop |
| Note | AC Power Cord Sold Separately |
| Number of Ports | 1 |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -20 C |
| Output Connector | RJ45 (Data, Power) |
| Power (Watts) - Per Port | 75 W |
| Size / Dimension [x] | 166 mm |
| Size / Dimension [x] | 6.53 " |
| Size / Dimension [y] | 80 mm |
| Size / Dimension [y] | 3.15 in |
| Size / Dimension [z] | 2.02 in |
| Size / Dimension [z] | 51.2 mm |
| Type | Midspan Injector |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 56 V |
| Weight | 1.1 lbs |
| Weight | 499 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
POE75U-1UP-N
56V Power Over Ethernet (POE) 1 Port Midspan Injector 10/100/1000 Mbps Data Rate
