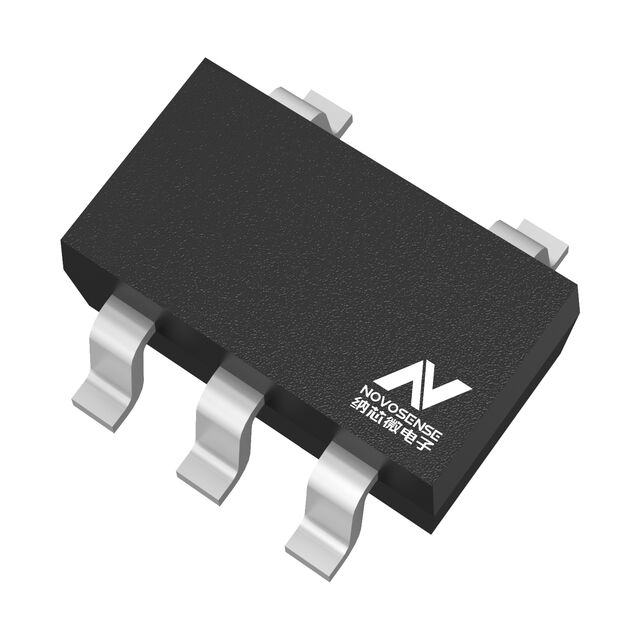

NSREF3012-DSTR
ActiveNOVOSENSE
0.2% ACCURACY 35PPM 1.2V REF
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NSREF3012-DSTR
ActiveNOVOSENSE
0.2% ACCURACY 35PPM 1.2V REF
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NSREF3012-DSTR |
|---|---|
| Current - Cathode [custom] | 135 µA |
| Current - Output | 10 mA |
| Mounting Type | Surface Mount |
| Noise - 0.1Hz to 10Hz | 9 µVpp/V |
| Operating Temperature [Max] | 145 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | 1.81 mOhm |
| Package / Case | SOT-23-3, TO-236-3, SC-59 |
| Reference Type | Series |
| Supplier Device Package | SOT-23-3L |
| Temperature Coefficient | 35 ppm/°C |
| Voltage - Input [Max] | 5.5 V |
| Voltage - Input [Min] | 1.8 V |
| Voltage - Output (Max) [Max] | 1.2525 V |
| Voltage - Output (Min/Fixed) | 1.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.47 | |
| 10 | $ 1.07 | |||
| 25 | $ 0.98 | |||
| 100 | $ 0.87 | |||
| 250 | $ 0.81 | |||
| 500 | $ 0.78 | |||
| 1000 | $ 0.76 | |||
| Digi-Reel® | 1 | $ 1.47 | ||
| 10 | $ 1.07 | |||
| 25 | $ 0.98 | |||
| 100 | $ 0.87 | |||
| 250 | $ 0.81 | |||
| 500 | $ 0.78 | |||
| 1000 | $ 0.76 | |||
| Tape & Reel (TR) | 3000 | $ 0.72 | ||
| 6000 | $ 0.71 | |||
| 9000 | $ 0.70 | |||
Description
General part information
NSREF3012-DSTR
Series Voltage Reference IC Fixed 1.25V 1.2525 VV 10 mA SOT-23-3L
