QBSLDR561GR
ActiveQT Brightek (QTB)

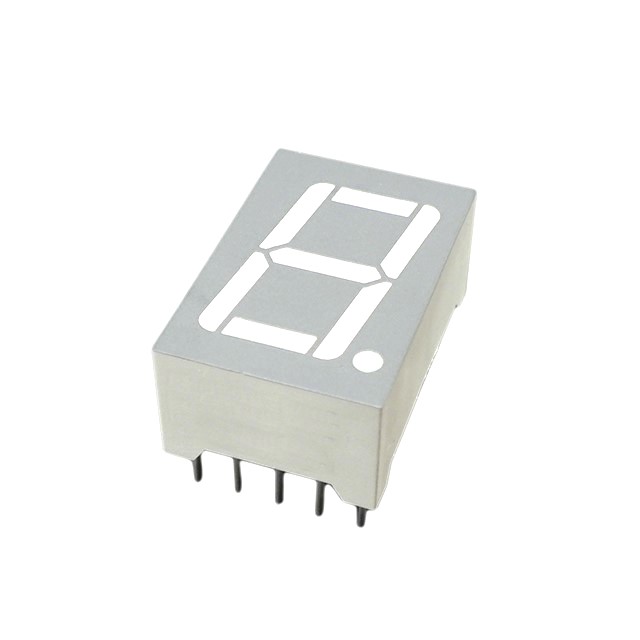

DISPLAY 7SEG 0.56"SGL RED 10DIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QBSLDR561GR
ActiveQT Brightek (QTB)
DISPLAY 7SEG 0.56"SGL RED 10DIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QBSLDR561GR |
|---|---|
| Color | Red |
| Common Pin | Common Cathode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 0.56 in |
| Digit/Alpha Size | 14.22 mm |
| Display Type | 7-Segment |
| Millicandela Rating | 80 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 0.6 in |
| Package / Case | 15.24 mm |
| Package / Case | 10-DIP |
| Power Dissipation (Max) [Max] | 48 mW |
| Size / Dimension [x] | 19 mm |
| Size / Dimension [x] | 0.748 in |
| Size / Dimension [y] | 12.6 mm |
| Size / Dimension [y] | 0.496 in |
| Size / Dimension [z] | 0.325 " |
| Size / Dimension [z] | 8.25 mm |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Peak | 632 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.31 | |
| 10 | $ 1.54 | |||
| 100 | $ 1.18 | |||
| 500 | $ 1.07 | |||
| 1000 | $ 0.92 | |||
| 2000 | $ 0.87 | |||
| 5000 | $ 0.85 | |||
| 10000 | $ 0.84 | |||
Description
General part information
QBSLDR561GR
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 2V 20mA 0.748" H x 0.496" W x 0.325" D (19.00mm x 12.60mm x 8.25mm) 10-DIP (0.600", 15.24mm)
