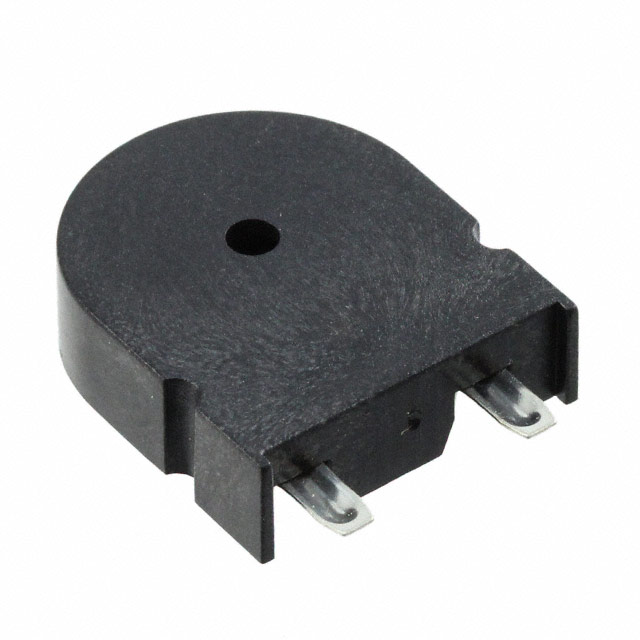

PT-2707
ActiveSoberton Inc.
BUZZER PIEZO 3V 22X7MM W TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PT-2707
ActiveSoberton Inc.
BUZZER PIEZO 3V 22X7MM W TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PT-2707 |
|---|---|
| Current - Supply | 1 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 2 kHz |
| Height - Seated (Max) [Max] [z] | 26.8 mm |
| Height - Seated (Max) [Max] [z] | 1.055 in |
| Input Type | Peak-Peak Signal |
| Mounting Type | Through Hole |
| Operating Mode | Single Tone |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Side |
| Size / Dimension [x] | 22 mm |
| Size / Dimension [x] | 0.866 in |
| Size / Dimension [y] | 7 mm |
| Size / Dimension [y] | 0.276 in |
| Sound Pressure Level (SPL) | 70 dB |
| Technology | Piezo |
| Termination | PC Pins |
| Voltage - Rated | 3 VDC |
| Voltage Range [Max] | 30 V |
| Voltage Range [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.63 | |
| 10 | $ 0.53 | |||
| 25 | $ 0.49 | |||
| 40 | $ 0.46 | |||
| 100 | $ 0.45 | |||
Description
General part information
PT-2707
Buzzers Transducer, Externally Driven Piezo 3 V 1mA 2kHz 70dB @ 3V, 10cm Through Hole PC Pins
