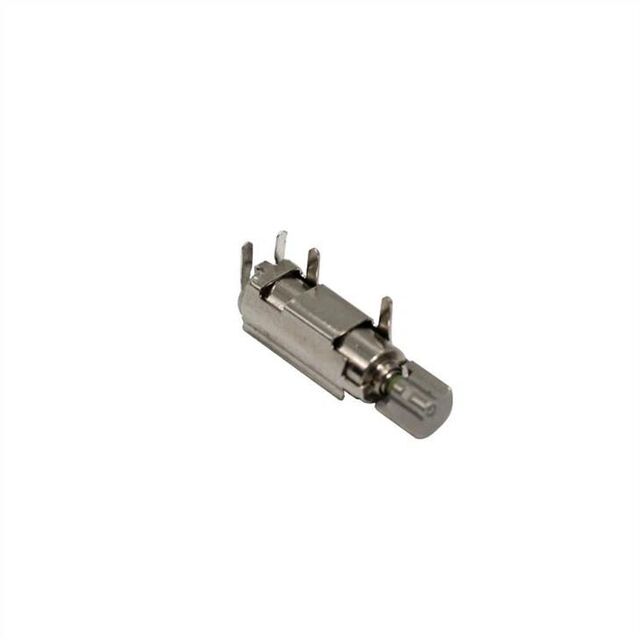

IND-YZ0412J-2037
ActiveINEED MOTOR
SMALLEST THRU-HOLE PCB MOUNTED C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IND-YZ0412J-2037 |
|---|---|
| Diameter - Shaft [diameter] | 0.181 in |
| Diameter - Shaft [diameter] | 4.6 mm |
| Function | ERM, Vibration |
| Length - Shaft and Bearing [x] | 15.6 mm |
| Length - Shaft and Bearing [x] | 0.614 in |
| Motor Type | Brushed |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| RPM | 14000 RPM |
| Termination Style | Quick Connect |
| Voltage - Rated | 3 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.92 | |
| 5 | $ 0.85 | |||
| 10 | $ 0.80 | |||
| 50 | $ 0.72 | |||
| 100 | $ 0.68 | |||
| 250 | $ 0.60 | |||
| 500 | $ 0.55 | |||
| 1000 | $ 0.52 | |||
Description
General part information
IND-YZ0412J-2037
Brushed Vibration, ERM 14000 RPM 3VDC
