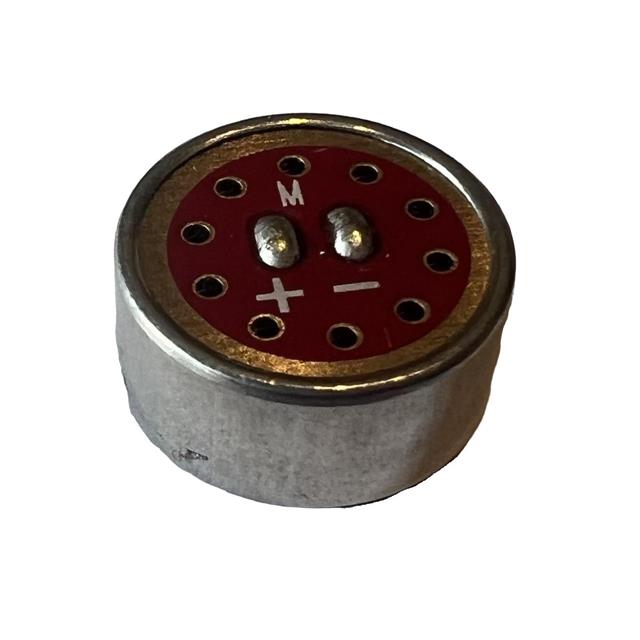

TM141053
ActiveTop Shelf Acoustics, LLC
UNI (SUPERCARDIOID) MICROPHONE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TM141053
ActiveTop Shelf Acoustics, LLC
UNI (SUPERCARDIOID) MICROPHONE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TM141053 |
|---|---|
| Current - Supply | 200 µA |
| Direction | Supercardioid |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 50 Hz |
| Height (Max) [Max] | 6.3 mm |
| Height (Max) [Max] | 0.248 in |
| Impedance | 2 kOhms |
| Output Type | Analog |
| Port Location | Bottom |
| S/N Ratio | 77 dB |
| Sensitivity | -35 dB |
| Shape | Circular |
| Termination | Solder Pads |
| Type | Electret Condenser |
| Voltage - Rated | 1 V |
| Voltage Range [Max] | 10 V |
| Voltage Range [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.01 | |
Description
General part information
TM141053
50 Hz ~ 10 kHz Analog Microphone Electret Condenser 1 V ~ 10 V Supercardioid (-35dB ±2dB) Solder Pads
