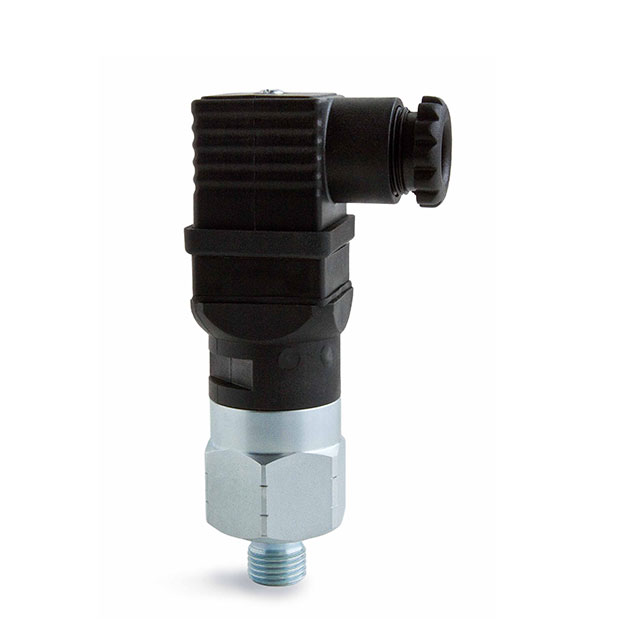

SMA-7-4M-C-HC
ActiveAnfield Industries
PRESSURE SWITCH, 1000-3000 PSI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMA-7-4M-C-HC
ActiveAnfield Industries
PRESSURE SWITCH, 1000-3000 PSI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMA-7-4M-C-HC |
|---|---|
| Applications | Industrial Automation |
| Maximum Pressure | 62052.81 kPa |
| Maximum Pressure [Max] | 9000 PSI |
| Operating Pressure [Max] | 3000 PSI |
| Operating Pressure [Max] | 20684.27 kPa |
| Operating Pressure [Min] | 6894.75 kPa |
| Operating Pressure [Min] | 1000 PSI |
| Operating Temperature [Max] | 82 °C |
| Operating Temperature [Min] | -29 °C |
| Output Type | SPDT |
| Package / Case | Cylinder |
| Port Size [custom] | NPT |
| Port Size [custom] | Male |
| Port Size [x] | 0.25 " |
| Port Size [x] | 6.35 mm |
| Port Style | Threaded |
| Pressure Type | Switch |
| Termination Style | DIN43650-A |
| Voltage - Supply [Max] | 24 V |
| Voltage - Supply [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SMA-7-4M-C-HC
PRESSURE SWITCH, 1000-3000 PSI
Documents
Technical documentation and resources
