CF2JB150R
ActiveStackpole Electronics Inc
RES 150 OHM 5% 2W AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
CF2JB150R
ActiveStackpole Electronics Inc
RES 150 OHM 5% 2W AXIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CF2JB150R |
|---|---|
| Composition | Carbon Film |
| Features | Safety, Flame Retardant Coating |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 2 W |
| Resistance | 150 Ohms |
| Size / Dimension [diameter] | 5 mm |
| Size / Dimension [diameter] | 0.197 " |
| Size / Dimension [x] | 0.591 in |
| Size / Dimension [x] | 15 mm |
| Supplier Device Package | Axial |
| Temperature Coefficient [Max] | -400 ppm/°C |
| Temperature Coefficient [Min] | 0 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.06 | |
Description
General part information
CF2JB150R

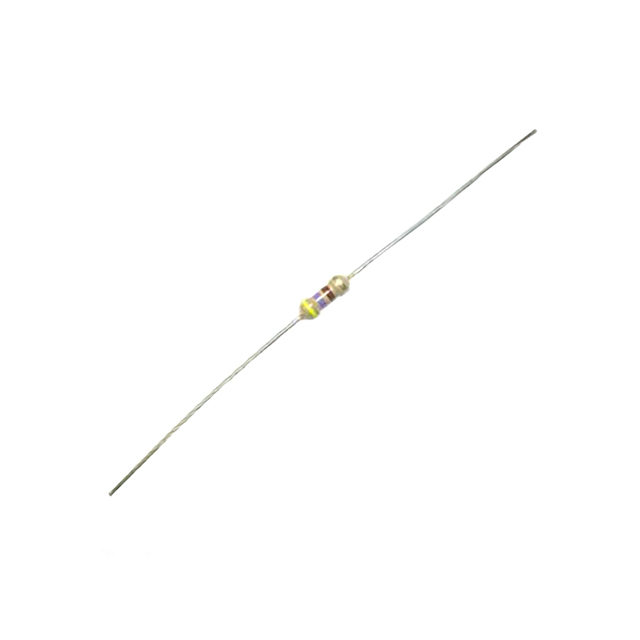

150 Ohms ±5% 2W Through Hole Resistor Axial Flame Retardant Coating, Safety Carbon Film
