ADT-PC-SCST-SMA1DX-RYL-5M
ActiveShenzhen ADTEK Technology Co., Ltd

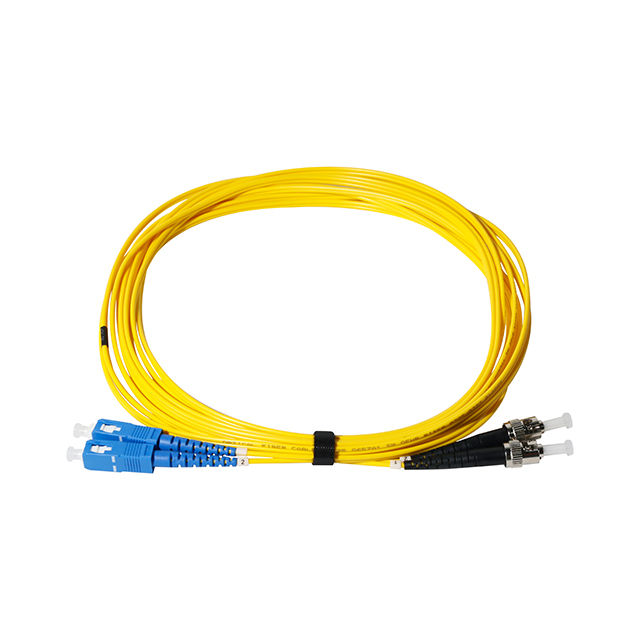

SC-ST SM DUPLEX FIBER JUMPER 5M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ADT-PC-SCST-SMA1DX-RYL-5M
ActiveShenzhen ADTEK Technology Co., Ltd
SC-ST SM DUPLEX FIBER JUMPER 5M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ADT-PC-SCST-SMA1DX-RYL-5M |
|---|---|
| 1st Connector | SC/UPC |
| 2nd Connector | ST/UPC |
| Bend Radius [radius] | 10 mm |
| Cable Diameter [diameter] | 2 mm |
| Cable Diameter [diameter] | 0.08 in |
| Cable Type | Fiber Patch |
| Color - Cable | Yellow |
| Color - Connectors | Blue |
| Features | Riser |
| Fiber Type | 9/125 |
| Insertion Loss | 0.2 dB |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Length - Overall | 5 m |
| Length - Overall | 16.4 ft |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Ratings | OFNR |
| Return Loss | 50 dB |
| Type | OS2, Duplex |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 20.56 | |
| 10 | $ 15.84 | |||
| 25 | $ 14.33 | |||
| 50 | $ 13.31 | |||
| 100 | $ 12.39 | |||
| 250 | $ 11.31 | |||
| 500 | $ 10.57 | |||
| 1000 | $ 10.00 | |||
Description
General part information
ADT-PC-SCST-SMA1DX-RYL-5M
Cable Fiber Optic SC/UPC To ST/UPC 9/125 16.4' (5.0m)
