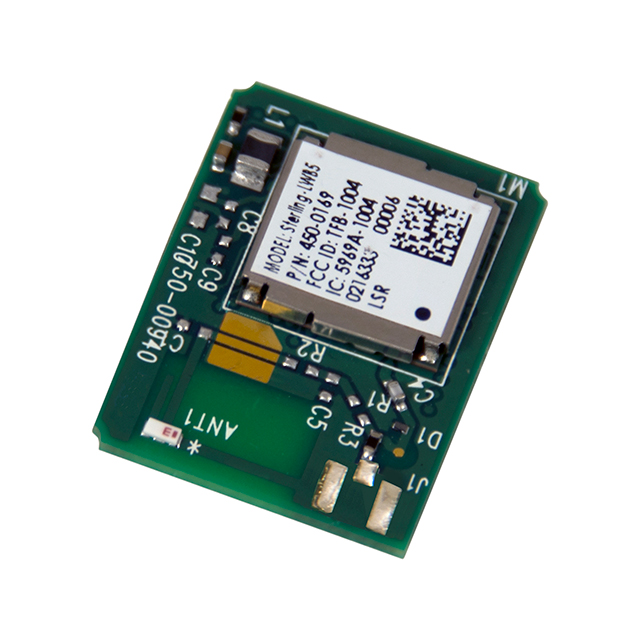

450-0169C
ObsoleteEzurio LLC
RF TXRX MOD BT WIFI CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
450-0169C
ObsoleteEzurio LLC
RF TXRX MOD BT WIFI CHIP SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 450-0169C |
|---|---|
| Antenna Type | Integrated, Chip |
| Current - Receiving | 320 mA |
| Current - Transmitting | 70 mA |
| Frequency [Max] | 2.48 GHz |
| Frequency [Min] | 2.402 GHz |
| Modulation | QPSK, 64QAM, DSSS, CCK, BPSK, 16QAM, OFDM |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 47-SMD Module |
| Protocol | Bluetooth, 802.11a/b/g/-c |
| RF Family/Standard | WiFi, Bluetooth |
| Sensitivity | -93 dBm |
| Serial Interfaces | UART, PCM, SDIO |
| Utilized IC / Part | BCM43353 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 36.04 | |
Description
General part information
450-0169C
Bluetooth, WiFi 802.11a/b/g/-c, Bluetooth Transceiver Module 2.402GHz ~ 2.48GHz Integrated, Chip Surface Mount
Documents
Technical documentation and resources
No documents available
