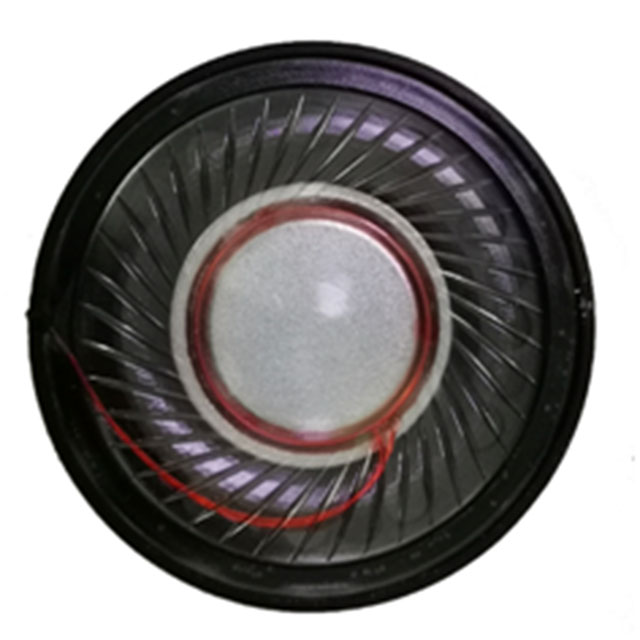

N40M-32001-02-45
ActiveHuizhou N Acoustics Co., Ltd
SPEAKER 32OHM 10MW 126DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
N40M-32001-02-45
ActiveHuizhou N Acoustics Co., Ltd
SPEAKER 32OHM 10MW 126DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | N40M-32001-02-45 |
|---|---|
| Efficiency - dBA | 126 dBA |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 110 Hz |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 20 Hz |
| Height - Seated (Max) [Max] | 7.54 mm |
| Height - Seated (Max) [Max] | 0.297 " |
| Impedance | 32 Ohms |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Power - Max [Max] | 20 mW |
| Power - Rated | 10 mW |
| Shape | Round |
| Size / Dimension [diameter] | 1.575 " |
| Size / Dimension [diameter] | 40 mm |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.61 | |
| 10 | $ 2.52 | |||
| 25 | $ 2.44 | |||
| 50 | $ 2.17 | |||
| 100 | $ 1.74 | |||
Description
General part information
N40M-32001-02-45
32 Ohms General Purpose Speaker 10 mW 20 Hz ~ 20 kHz Round
