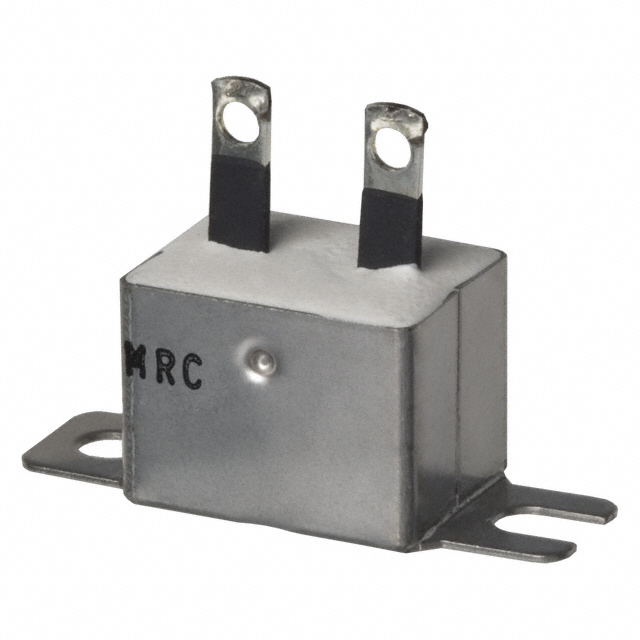

MCRL0045500R0KHB00
ActiveVishay Huntington Electric Inc.
RES CHAS MNT 500 OHM 10% 45W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MCRL0045500R0KHB00
ActiveVishay Huntington Electric Inc.
RES CHAS MNT 500 OHM 10% 45W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MCRL0045500R0KHB00 |
|---|---|
| Coating, Housing Type | Aluminum |
| Composition | Wirewound |
| Features | Flame Proof, Safety |
| Height - Seated (Max) [Max] | 0.75 in |
| Height - Seated (Max) [Max] | 19.05 mm |
| Lead Style | 0.188 in |
| Lead Style | Quick Connects |
| Lead Style | 4.78 mm |
| Mounting Feature | Flanges |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Resistance | 500 Ohms |
| Size / Dimension [x] | 1.875 in |
| Size / Dimension [x] | 47.63 mm |
| Size / Dimension [y] | 0.75 in |
| Size / Dimension [y] | 19.05 mm |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 7.66 | |
Description
General part information
MCRL0045500R0KHB00
500 Ohms ±10% 45W Wirewound Chassis Mount Resistor
Documents
Technical documentation and resources
