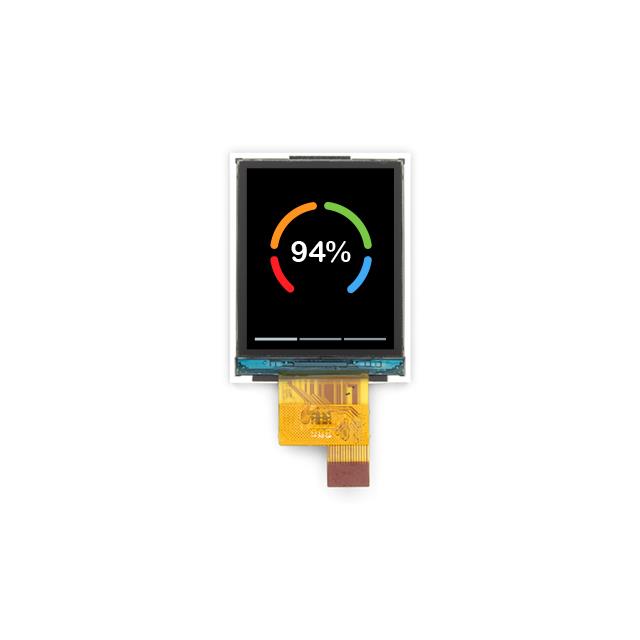

DT018BTFT-SHB
ActiveDisplaytech
1.8 INCH 128 X 160 TFT DISPLAY W
Deep-Dive with AI
Search across all available documentation for this part.
DT018BTFT-SHB
ActiveDisplaytech
1.8 INCH 128 X 160 TFT DISPLAY W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DT018BTFT-SHB |
|---|---|
| Background Color | White |
| Backlight | LED - White |
| Controller Type | ILI9163 |
| Diagonal Screen Size [custom] | 45.72 mm |
| Diagonal Screen Size [custom] | 1.8 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pitch [x] | 0.22 mm |
| Dot Pitch [y] | 0.22 mm |
| Dot Pixels [x] | 160 |
| Dot Pixels [y] | 128 |
| Dot Size [x] | 0.07 mm |
| Dot Size [y] | 0.22 mm |
| Graphics Color | Green, Red, Blue |
| Interface | SPI |
| Viewing Area [x] | 28.63 mm |
| Viewing Area [y] | 35.64 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.99 | |
| 10 | $ 9.42 | |||
| 100 | $ 7.79 | |||
| 576 | $ 6.82 | |||
| 1152 | $ 6.45 | |||
Description
General part information
DT018BTFT-SHB
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color SPI 1.8" (45.72mm) 160 x 128
Documents
Technical documentation and resources
No documents available
