193-A001
ActiveAmphenol Onanon

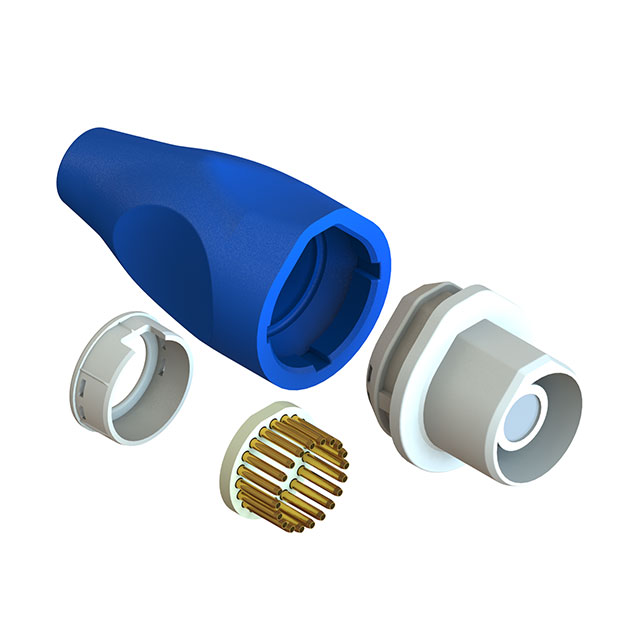

MAGCONNECT HERO PLUG KIT
Deep-Dive with AI
Search across all available documentation for this part.
193-A001
ActiveAmphenol Onanon
MAGCONNECT HERO PLUG KIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 193-A001 |
|---|---|
| Applications | Aerospace, Medical, Military, Commercial |
| Color | Blue |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 3 A |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Insert Material | Thermoplastic Polyester |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 20 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | 0 °C |
| Orientation | 1 |
| Primary Material | Plastic |
| Shell Material | Brass |
| Voltage Rating | 1500 V, 1000 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 57.66 | |
| 10 | $ 52.91 | |||
| 25 | $ 50.87 | |||
| 50 | $ 49.18 | |||
| 100 | $ 46.46 | |||
Description
General part information
193-A001
20 Position Circular Connector Plug, Female Sockets Solder Cup
