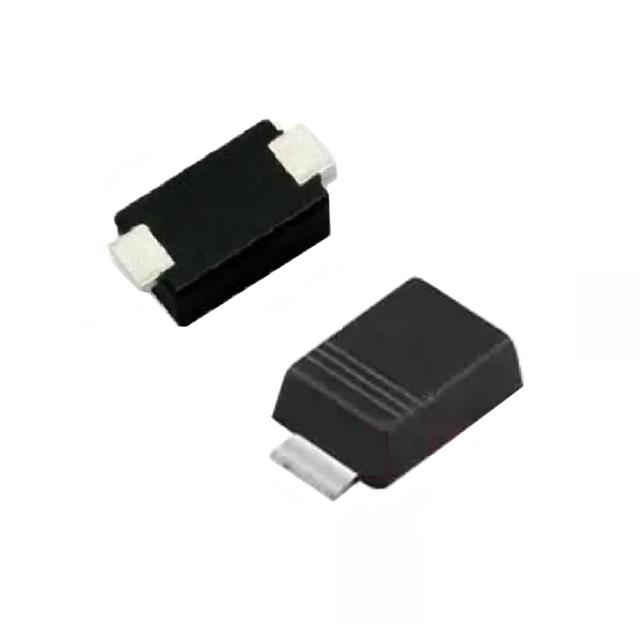

SMAF22CA-A
ActiveYenyo Technology
TVS 400W DIODE 22VWM BI-DIR SMA-
Deep-Dive with AI
Search across all available documentation for this part.
SMAF22CA-A
ActiveYenyo Technology
TVS 400W DIODE 22VWM BI-DIR SMA-
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMAF22CA-A |
|---|---|
| Bidirectional Channels [custom] | 1 |
| Current - Peak Pulse (10/1000µs) | 11.3 A |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 °C |
| Package / Case | SMA Flat Leads, DO-221AC |
| Power - Peak Pulse | 400 W |
| Power Line Protection | False |
| Qualification | AEC-Q101 |
| Supplier Device Package | SMA-FL |
| Type | Zener |
| Voltage - Clamping (Max) @ Ipp | 35.5 V |
| Voltage - Reverse Standoff (Typ) | 22 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 20 | $ 0.29 | |
| 100 | $ 0.18 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.08 | |||
| 2000 | $ 0.07 | |||
Description
General part information
SMAF22CA-A
35.5V Clamp 11.3A Ipp Tvs Diode Surface Mount SMA-FL
Documents
Technical documentation and resources
No documents available
