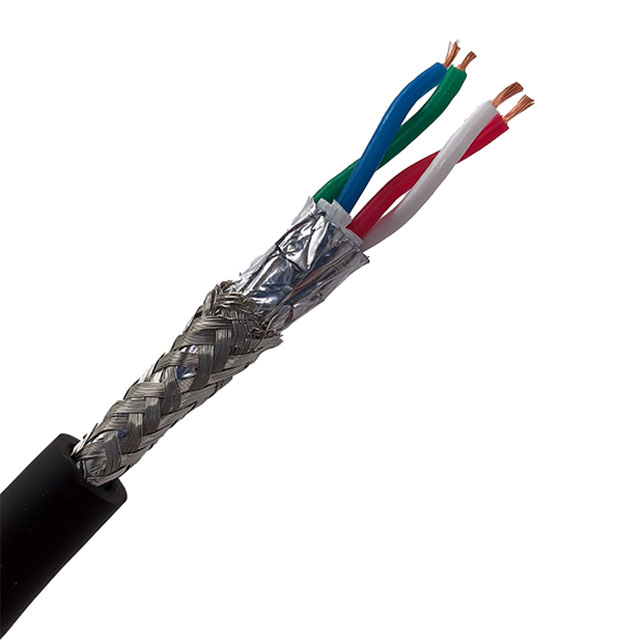

IO-D22428- 500SP
ActiveIO Audio Technologies
MULTICONDUCTOR CABLE, SHIELDED, 4 CONDUCTOR, 24 AWG, 500 FT, 152.4 M
Deep-Dive with AI
Search across all available documentation for this part.
IO-D22428- 500SP
ActiveIO Audio Technologies
MULTICONDUCTOR CABLE, SHIELDED, 4 CONDUCTOR, 24 AWG, 500 FT, 152.4 M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IO-D22428- 500SP |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Polyethylene (PE) |
| Conductor Material | Copper, Tinned |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length [x] | 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 4 |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Braid |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
IO-D22428- 500SP
4 (2 Pair Twisted) Conductor Multi-Pair Cable Black 24 AWG Braid 500.0' (152.4m)
Documents
Technical documentation and resources
