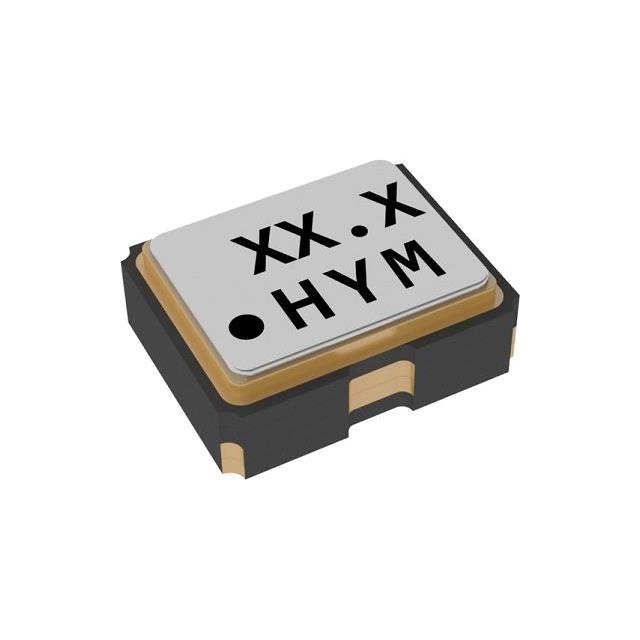

S2H048000F3CHC-T
ActiveHarmony Electronics Corp / H.ELE.
HSO221S/48MHZ/3.3V/30PPM/-30~85C
Deep-Dive with AI
Search across all available documentation for this part.
S2H048000F3CHC-T
ActiveHarmony Electronics Corp / H.ELE.
HSO221S/48MHZ/3.3V/30PPM/-30~85C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S2H048000F3CHC-T |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 15 mA |
| Frequency | 48 MHz |
| Frequency Stability | 30 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.98 | |
| 10 | $ 0.84 | |||
| 50 | $ 0.76 | |||
| 100 | $ 0.73 | |||
| 500 | $ 0.65 | |||
| 1000 | $ 0.63 | |||
| Digi-Reel® | 1 | $ 0.98 | ||
| 10 | $ 0.84 | |||
| 50 | $ 0.76 | |||
| 100 | $ 0.73 | |||
| 500 | $ 0.65 | |||
| 1000 | $ 0.63 | |||
| Tape & Reel (TR) | 3000 | $ 0.53 | ||
| 6000 | $ 0.51 | |||
| 15000 | $ 0.49 | |||
Description
General part information
S2H048000F3CHC-T
48 MHz XO (Standard) Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Documents
Technical documentation and resources
No documents available
