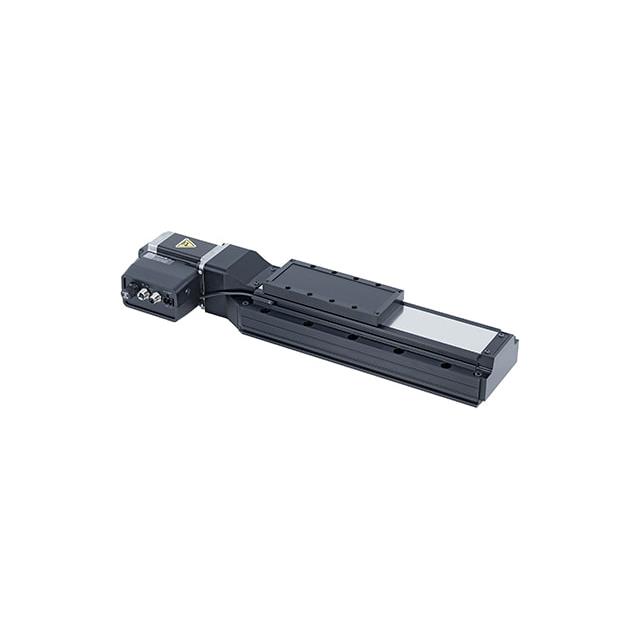

X-LRT0750DL-E08C-KX14N
ActiveZaber Technologies
LINEAR STAGE 750MM CPITCH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | X-LRT0750DL-E08C-KX14N |
|---|---|
| Accuracy | 188 µm |
| Approval Agency | CE |
| Construction | Lead Screw |
| Duty Cycle | 100 % |
| Features | Translation Stage, Integrated Controller |
| Feedback Type | Incremental Encoder |
| Load Force (Dynamic) | 674.43 lbf |
| Load Force (Dynamic) | 3000 N |
| Load Force (Static) | 3000 N |
| Load Force (Static) | 674.43 lbf |
| Motor Type | Stepper, Bipolar |
| Speed | 27.56 in/s |
| Speed | 700 mm/s |
| Stroke Length | 750 mm |
| Stroke Length | 29.528 in |
| Termination Style | Connector |
| Type | Linear Axis |
| Voltage - Rated [Max] | 48 V |
| Voltage - Rated [Min] | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 5687.00 | |
Description
General part information
X-LRT0750DL-E08C-KX14N
LINEAR STAGE 750MM CPITCH
