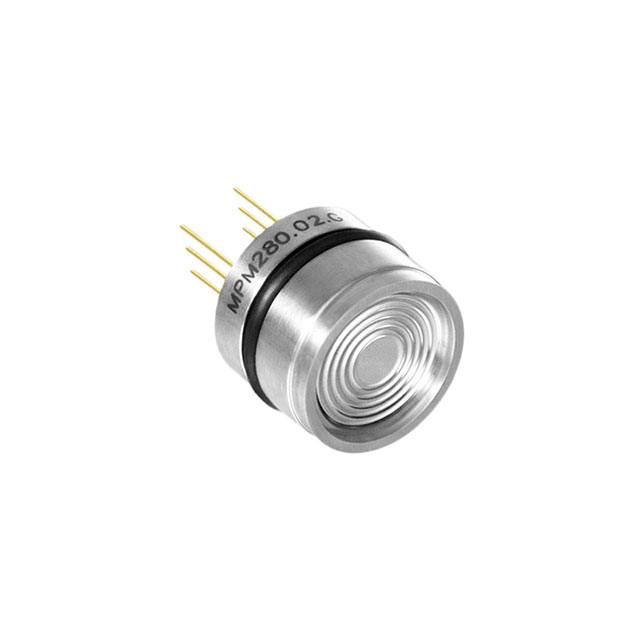

MPM280 18 A 0 L 1
ActiveMicro Sensor
SENSOR 5076.32PSIA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPM280 18 A 0 L 1
ActiveMicro Sensor
SENSOR 5076.32PSIA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPM280 18 A 0 L 1 |
|---|---|
| Features | Temperature Compensated |
| Maximum Pressure | 52500 kPa |
| Maximum Pressure | 7614.48 PSI |
| Operating Pressure | 5076.32 PSI |
| Operating Pressure | 35000 kPa |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Analog Voltage |
| Package / Case | Module |
| Port Size | Cell w/Body O-Ring |
| Port Style | No Port |
| Termination Style | PC Pin |
| Voltage - Supply | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Can | 2 | $ 69.50 | |
Description
General part information
MPM280 18 A 0 L 1
Pressure Sensor 5076.32PSI (35000kPa) Absolute Cell w/Body O-Ring Module
