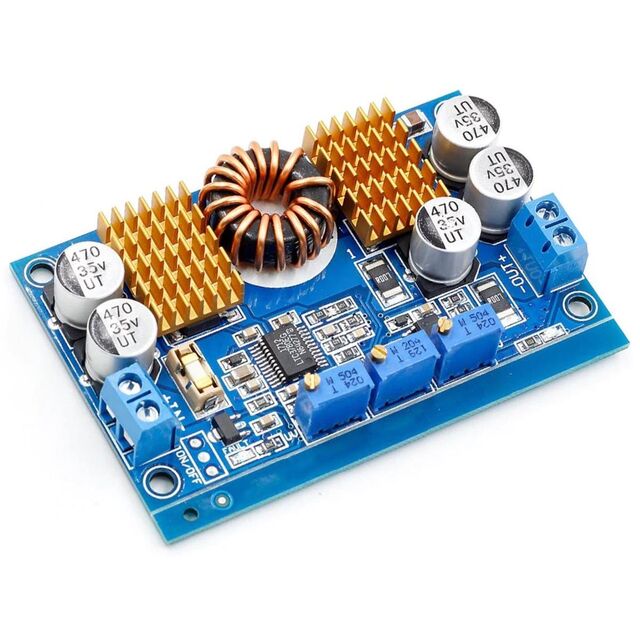

26558
ActiveCANADUINO®
SEPIC, INPUT 5-32V DC
Deep-Dive with AI
Search across all available documentation for this part.
26558
ActiveCANADUINO®
SEPIC, INPUT 5-32V DC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 26558 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 10 A |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 300 W |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [x] | 3.15 in |
| Size / Dimension [y] | 60 mm |
| Size / Dimension [y] | 2.36 " |
| Size / Dimension [z] | 15 mm |
| Size / Dimension [z] | 0.59 in |
| Type | Open Frame |
| Voltage - Input (Max) [Max] | 32 V |
| Voltage - Input (Min) [Min] | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.99 | |
| 3 | $ 15.29 | |||
Description
General part information
26558
Open Frame DC DC Converter 1 Output 1 ~ 30V 10A 32V Input
Documents
Technical documentation and resources
No documents available
