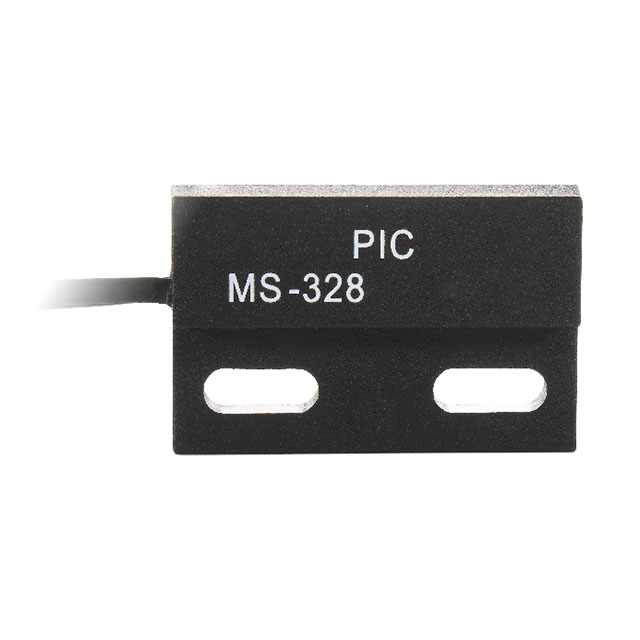

MS-328-7-3-0500
ActivePIC GmbH
NORMALLY CLOSED REED SENSOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS-328-7-3-0500
ActivePIC GmbH
NORMALLY CLOSED REED SENSOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS-328-7-3-0500 |
|---|---|
| Actuator Material | Magnet |
| Frequency | 100 Hz |
| Must Operate [Max] | 25 AT |
| Must Operate [Min] | 20 AT |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Output Type | SPST-NC |
| Package / Case | Flange Mount |
| Termination Style | Wire Leads |
| Type | Reed Switch |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.93 | |
| 10 | $ 5.17 | |||
| 25 | $ 4.89 | |||
| 100 | $ 4.49 | |||
| 250 | $ 4.24 | |||
| 500 | $ 4.06 | |||
| 1000 | $ 3.88 | |||
| 2500 | $ 3.66 | |||
Description
General part information
MS-328-7-3-0500
Magnetic Reed Switch Magnet SPST-NC Wire Leads Flange Mount
