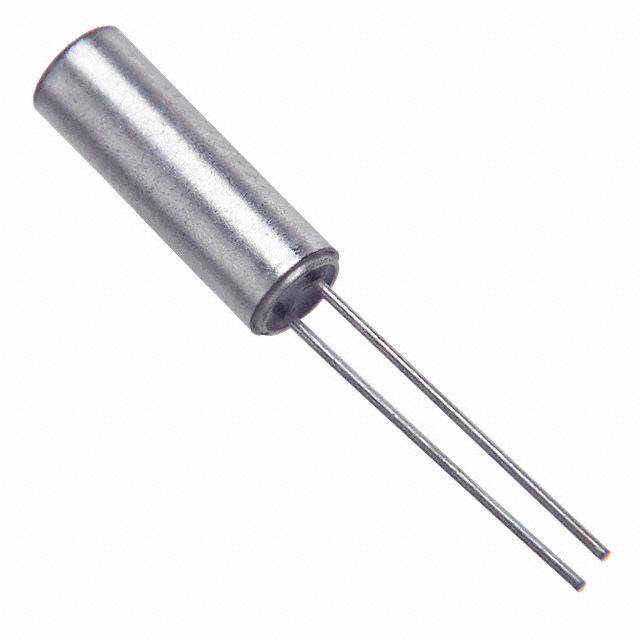

CSA309-11.0592MABJ-UB
ObsoleteCitizen Finedevice Co Ltd
CRYSTAL 11.0592MHZ 18PF TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CSA309-11.0592MABJ-UB
ObsoleteCitizen Finedevice Co Ltd
CRYSTAL 11.0592MHZ 18PF TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CSA309-11.0592MABJ-UB |
|---|---|
| ESR (Equivalent Series Resistance) | 50 Ohms |
| Frequency | 11.0592 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) [Max] | 0.354 in |
| Height - Seated (Max) [Max] | 9 mm |
| Load Capacitance | 18 pF |
| Mounting Type | Through Hole |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Package / Case | Cylindrical Can, Radial |
| Size / Dimension [diameter] | 0.118 in |
| Size / Dimension [diameter] | 3 mm |
| Size / Dimension [x] | 8.8 mm |
| Size / Dimension [x] | 0.346 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CSA309-11.0592MABJ-UB
11.0592 MHz ±30ppm Crystal 18pF 50 Ohms Cylindrical Can, Radial
