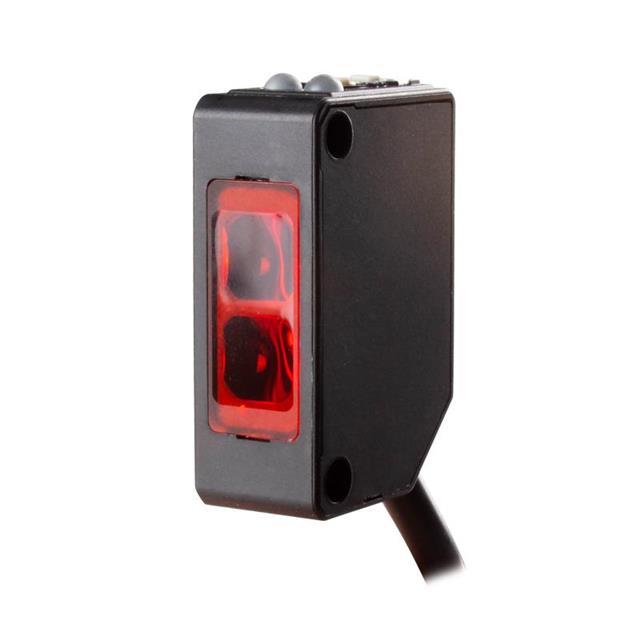

Z3D-100P
ActiveOptex FA
SENSOR DIFFUSE 0-1M PNP 2M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Z3D-100P
ActiveOptex FA
SENSOR DIFFUSE 0-1M PNP 2M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Z3D-100P |
|---|---|
| Adjustment Type | Adjustable, 1-Turn Potentiometer |
| Cable Length | 78.74 in |
| Cable Length | 2 m |
| Connection Method | Cable |
| Ingress Protection | IP67 |
| Light Source | 632 nm |
| Light Source | Red |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Output Configuration | PNP - Open Collector, Light-ON\Dark-ON |
| Response Time | 500 µs |
| Sensing Distance [Max] | 39.37 in |
| Sensing Distance [Min] | 0 mm |
| Sensing Method | Reflective, Diffuse |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 63.00 | |
Description
General part information
Z3D-100P
Reflective, Diffuse Optical Sensor 0" ~ 39.37" (0m ~ 1m) PNP - Open Collector, Light-ON\Dark-ON
