140000688
ActiveAmphenol Procom
BA 800/GPS/760-860-SMA(F)
Deep-Dive with AI
Search across all available documentation for this part.
140000688
ActiveAmphenol Procom
BA 800/GPS/760-860-SMA(F)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 140000688 |
|---|---|
| Antenna Type | Module |
| Applications | GPS |
| Frequency (Center/Band) | 1.575 GHz, 810 MHz |
| Frequency Range [Max] | 860 MHz |
| Frequency Range [Min] | 760 MHz |
| Gain | 0 dBi |
| Height (Max) | 760 mm |
| Height (Max) [Max] | 29.921 in |
| Mounting Type | Connector Mount |
| Number of Bands | 2 |
| Power - Max [Max] | 25 W |
| RF Family/Standard | Navigation |
| Termination | SMA Female |
| VSWR | 2.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 109.58 | |
| 10 | $ 103.32 | |||
| 25 | $ 97.06 | |||
| 100 | $ 90.80 | |||
Description
General part information
140000688

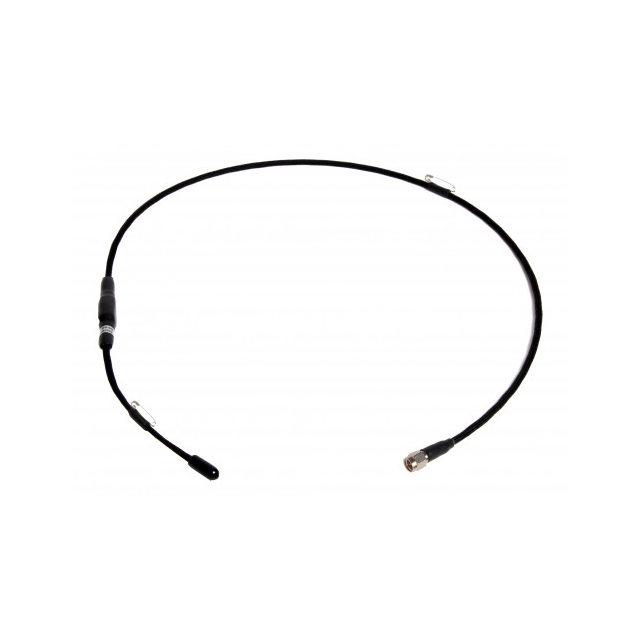

RF ANTENNA GPS Module SMA Female Connector Mount
Documents
Technical documentation and resources
No documents available
