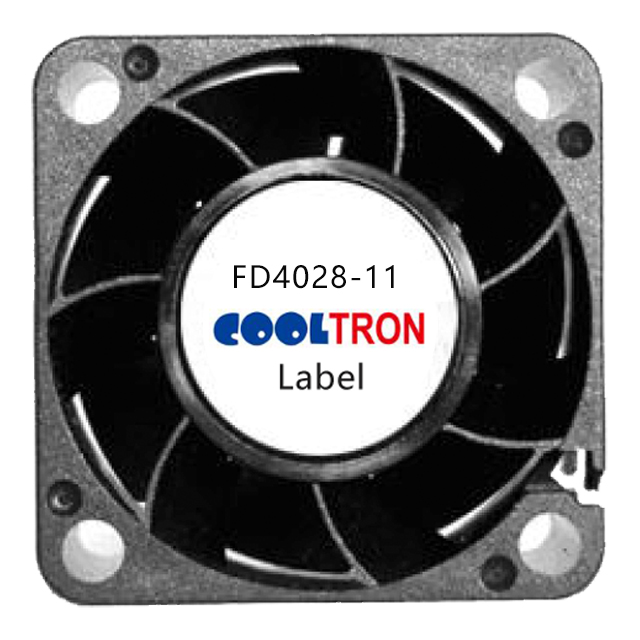

FD4028B24W7-11-2R
ActiveCooltron Industrial Supply
DC AXIAL FAN 40X40X28MM 24VDC
Deep-Dive with AI
Search across all available documentation for this part.
FD4028B24W7-11-2R
ActiveCooltron Industrial Supply
DC AXIAL FAN 40X40X28MM 24VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FD4028B24W7-11-2R |
|---|---|
| Air Flow | 14.6 CFM |
| Air Flow | 0.409 m³/min |
| Approval Agency | CE, cUL, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.25 A |
| Fan Type | Tubeaxial |
| Features | Auto Restart |
| Lifetime @ Temp. | 80000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Noise | 36.9 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 3.84 W |
| RPM | 8000 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [z] | 40 mm |
| Static Pressure | 0.585 in H2O |
| Static Pressure | 145.7 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 26.4 VDC |
| Voltage Range [Min] | 12 VDC |
| Weight | 0.101 lb |
| Weight | 45.81 g |
| Width [y] | 28 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 2 | $ 20.00 | |
| 10 | $ 18.00 | |||
| 20 | $ 17.50 | |||
Description
General part information
FD4028B24W7-11-2R
Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Ball 14.6 CFM (0.409mł/min) 2 Wire Leads
