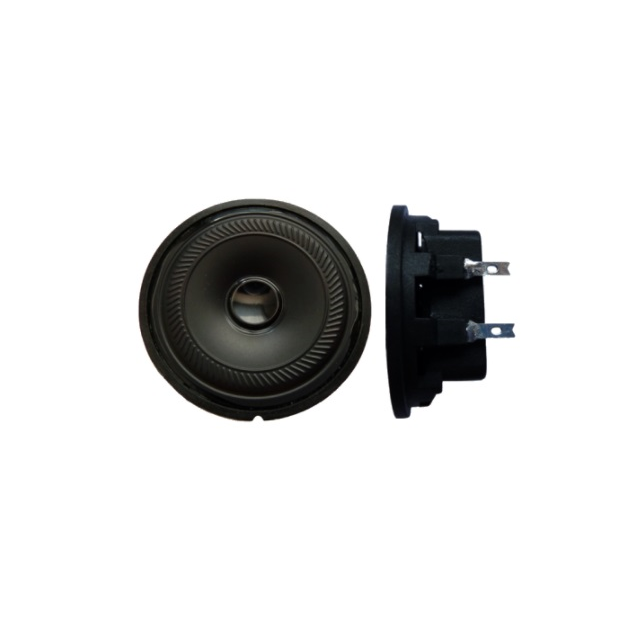

SOD20722X50CV
ActiveSeltech
SPEAKER 50OHM 1W 85.5DB VERT
Deep-Dive with AI
Search across all available documentation for this part.
SOD20722X50CV
ActiveSeltech
SPEAKER 50OHM 1W 85.5DB VERT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SOD20722X50CV |
|---|---|
| Efficiency - dBA | 85.5 dBA |
| Efficiency - Type | Sensitivity |
| Frequency - Self Resonant | 300 Hz |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 300 Hz |
| Height - Seated (Max) [Max] | 0.717 in |
| Height - Seated (Max) [Max] | 18.2 mm |
| Impedance | 50 Ohms |
| Material - Cone [custom] | Plastic |
| Material - Magnet | Ferrite |
| Power - Max [Max] | 2 W |
| Power - Rated | 1 W |
| Shape | Round |
| Size / Dimension [diameter] | 1.969 in |
| Size / Dimension [diameter] | 50 mm |
| Technology | Magnetic |
| Termination | Solder Pads |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.25 | |
| 20 | $ 4.00 | |||
| 100 | $ 3.75 | |||
Description
General part information
SOD20722X50CV
50 Ohms Speaker 1 W 300 Hz ~ 10 kHz Round
Documents
Technical documentation and resources
No documents available
