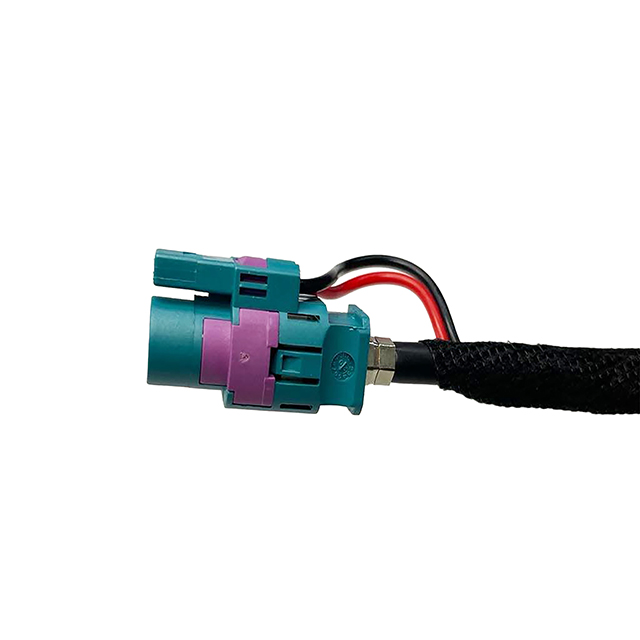

VA-07-FHZSJ4P2-FHZSJ4P2-31.5
ActiveVedtronics
CBL ASSY FAKRA JACK-JACK 31.5"
Deep-Dive with AI
Search across all available documentation for this part.
VA-07-FHZSJ4P2-FHZSJ4P2-31.5
ActiveVedtronics
CBL ASSY FAKRA JACK-JACK 31.5"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VA-07-FHZSJ4P2-FHZSJ4P2-31.5 |
|---|---|
| 1st Connector | HSD Fakra Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | HSD Fakra Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 100 Ohms |
| Cable Type | Dacar 535 4-Core |
| Color | Black |
| Connector Impedance | 100 Ohms |
| Features | Shielded, Z Code |
| Frequency - Max [Max] | 2 GHz |
| Length [x] | 31.5 in |
| Length [x] | 800 mm |
| Overall Impedance | 100 Ohms |
| Style | Fakra to Fakra |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 38.00 | |
Description
General part information
VA-07-FHZSJ4P2-FHZSJ4P2-31.5
Cable Assembly Coaxial Fakra to Fakra Dacar 535 4-Core 31.50" (800.00mm)
Documents
Technical documentation and resources
No documents available
