51530-02001-001
ActiveAces Connectors
20PIN, 0.5MM PITCH EASY-ON FFC/F
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
51530-02001-001
ActiveAces Connectors
20PIN, 0.5MM PITCH EASY-ON FFC/F
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 51530-02001-001 |
|---|---|
| Actuator Material | Nylon 6T, Glass Filled, Polyamide (PA6T) |
| Cable End Type [custom] | Tabbed, Straight |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Features | Solder Retention |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC |
| Height Above Board | 1.8 mm |
| Height Above Board | 0.071 in |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 20 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.81 | |
| 10 | $ 0.61 | |||
| 25 | $ 0.55 | |||
| 50 | $ 0.51 | |||
| 100 | $ 0.47 | |||
| 250 | $ 0.43 | |||
| 500 | $ 0.39 | |||
| 1000 | $ 0.37 | |||
| Digi-Reel® | 1 | $ 0.81 | ||
| 10 | $ 0.61 | |||
| 25 | $ 0.55 | |||
| 50 | $ 0.51 | |||
| 100 | $ 0.47 | |||
| 250 | $ 0.43 | |||
| 500 | $ 0.39 | |||
| 1000 | $ 0.37 | |||
| Tape & Reel (TR) | 2000 | $ 0.34 | ||
| 4000 | $ 0.32 | |||
| 6000 | $ 0.30 | |||
| 10000 | $ 0.29 | |||
| 14000 | $ 0.28 | |||
| 20000 | $ 0.27 | |||
Description
General part information
51530-02001-001

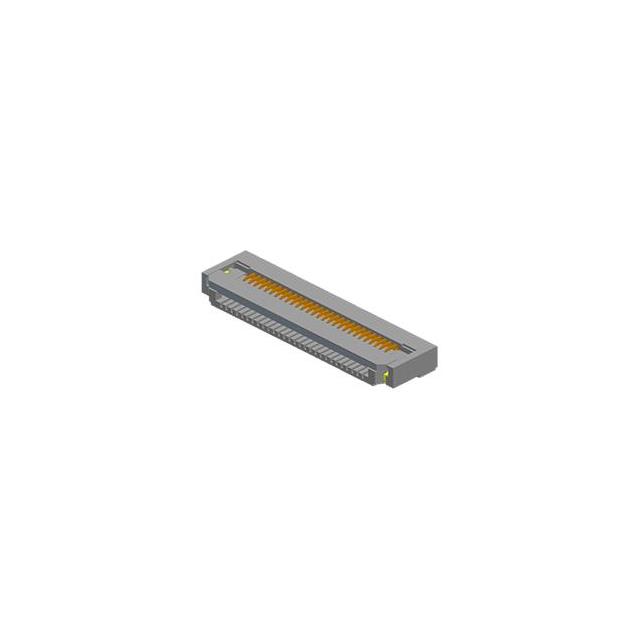

20 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
