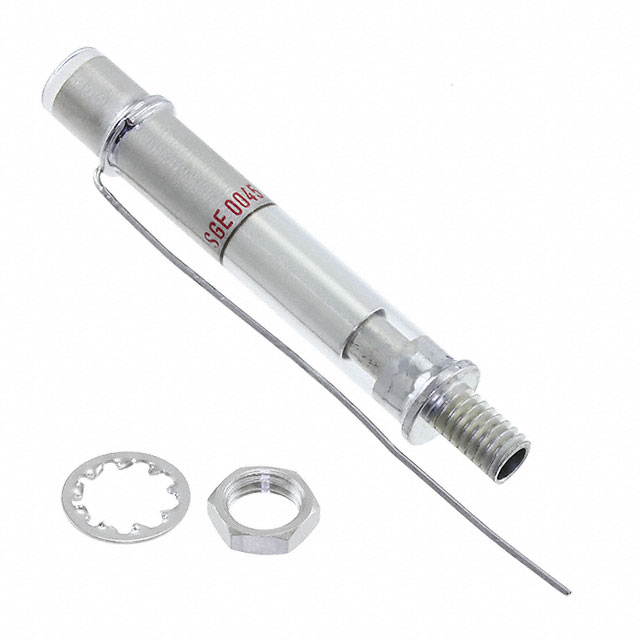

GGR30000
ObsoleteSprague-Goodman
CAP TRIMMER 0.8-30PF 1250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GGR30000
ObsoleteSprague-Goodman
CAP TRIMMER 0.8-30PF 1250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GGR30000 |
|---|---|
| Adjustment Type | Side |
| Capacitance Range [Max] | 30 pF |
| Capacitance Range [Min] | 0.8 pF |
| Features | General Purpose |
| Height - Seated (Max) [Max] [z] | 1.656 " |
| Height - Seated (Max) [Max] [z] | 42.06 mm |
| Mounting Type | User Defined |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Q @ Freq | 350, 20 MHz |
| Size / Dimension [diameter] | 0.312 in |
| Size / Dimension [diameter] | 7.92 mm |
| Voltage - Rated | 1250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
GGR30000
0.8 ~ 30pF Trimmer Capacitor 1250 V Side User Defined
