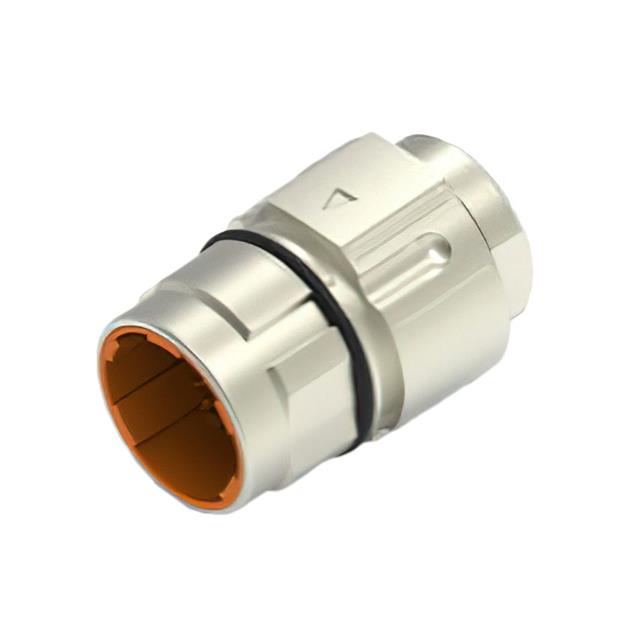

BEA089N00000222000
ActiveTE Intercontec
CONN RCPT HSG MALE 8POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BEA089N00000222000
ActiveTE Intercontec
CONN RCPT HSG MALE 8POS PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BEA089N00000222000 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Fastening Type | Push-Twist |
| Housing Color | Silver |
| Includes | 1 Connector, 1 O-Ring |
| Ingress Protection | IP66/IP67 |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Note | Contacts Not Included |
| Number of Positions | PE |
| Number of Positions [custom] | 3 |
| Number of Positions [custom] | 8 |
| Number of Positions [custom] | 4 |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | Keyed |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M23-8 |
| Shielding | Unshielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 24.39 | |
| 10 | $ 18.80 | |||
| 25 | $ 17.02 | |||
| 50 | $ 15.82 | |||
| 100 | $ 14.73 | |||
| 250 | $ 13.45 | |||
| 500 | $ 12.59 | |||
Description
General part information
BEA089N00000222000
8 (4 + 3 Power + PE) Position Circular Connector Receptacle Housing Panel Mount
