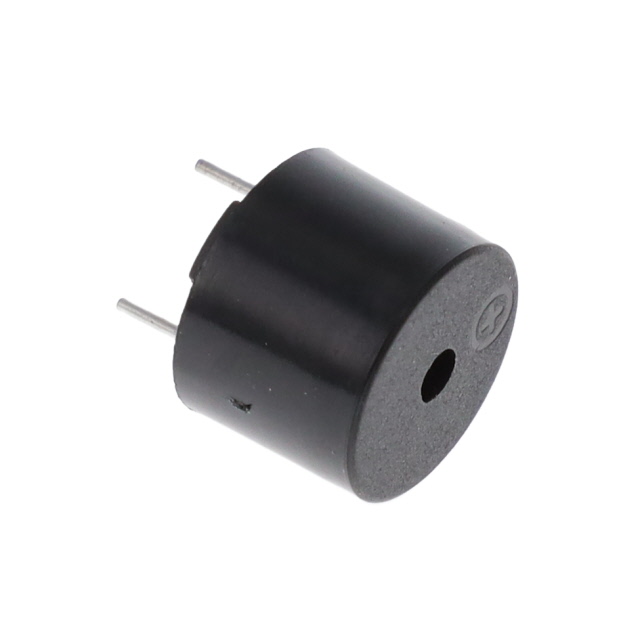

WST-1210T
ActiveSoberton Inc.
BUZZER MAGNETIC 5V 12MM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WST-1210T
ActiveSoberton Inc.
BUZZER MAGNETIC 5V 12MM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WST-1210T |
|---|---|
| Current - Supply | 30 mA |
| Driver Circuitry | Internally Driven, Indicator |
| Frequency | 2.3 kHz |
| Height - Seated (Max) [Max] | 9.7 mm |
| Height - Seated (Max) [Max] | 0.382 " |
| Input Type | DC |
| Mounting Type | Through Hole |
| Operating Mode | Single Tone |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Size / Dimension [diameter] | 12 mm |
| Size / Dimension [diameter] | 0.472 in |
| Sound Pressure Level (SPL) | 85 dB |
| Technology | Magnetic |
| Termination | PC Pins |
| Voltage - Rated | 5 V |
| Voltage Range [Max] | 8 V |
| Voltage Range [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.85 | |
| 10 | $ 0.69 | |||
| 25 | $ 0.64 | |||
| 40 | $ 0.61 | |||
| 100 | $ 0.56 | |||
| 300 | $ 0.51 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.46 | |||
| 4900 | $ 0.41 | |||
Description
General part information
WST-1210T
Buzzers Indicator, Internally Driven Magnetic 5 V 30mA 2.3kHz 85dB @ 5V, 10cm Through Hole PC Pins
