QBSLDS301GR
ActiveQT Brightek (QTB)

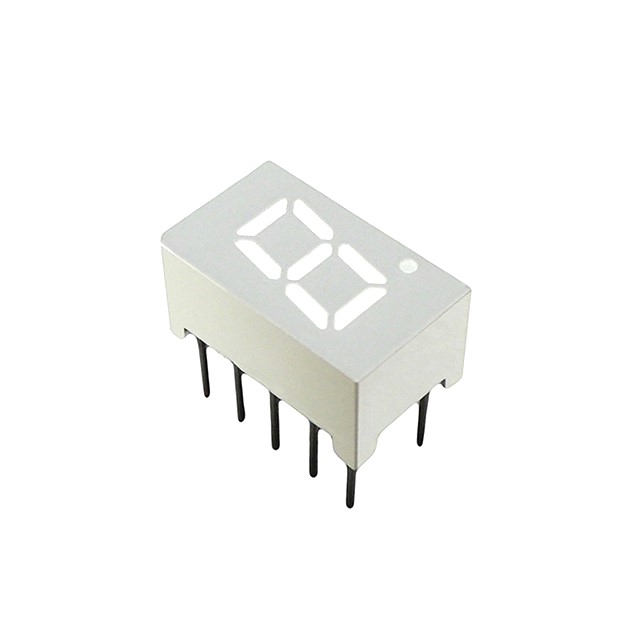

DISPLAY 7SEG 0.3" SGL RED 10DIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QBSLDS301GR
ActiveQT Brightek (QTB)
DISPLAY 7SEG 0.3" SGL RED 10DIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QBSLDS301GR |
|---|---|
| Color | Red |
| Common Pin | Common Cathode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 0.3 in |
| Digit/Alpha Size | 7.62 mm |
| Display Type | 7-Segment |
| Millicandela Rating | 12 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 10-DIP |
| Package / Case | 0.2 in |
| Package / Case | 0.2 in |
| Power Dissipation (Max) [Max] | 48 mW |
| Size / Dimension [x] | 0.25 " |
| Size / Dimension [x] | 6.35 mm |
| Size / Dimension [y] | 0.299 in |
| Size / Dimension [y] | 7.6 mm |
| Size / Dimension [z] | 0.5 in |
| Size / Dimension [z] | 12.7 mm |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Peak | 660 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1.90 | |
| 10 | $ 1.20 | |||
| 100 | $ 0.89 | |||
| 500 | $ 0.82 | |||
| 1000 | $ 0.67 | |||
| 2000 | $ 0.64 | |||
| 5000 | $ 0.62 | |||
| 10000 | $ 0.61 | |||
Description
General part information
QBSLDS301GR
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 2V 20mA 0.500" H x 0.299" W x 0.250" D (12.70mm x 7.60mm x 6.35mm) 10-DIP (0.200", 5.08mm)
