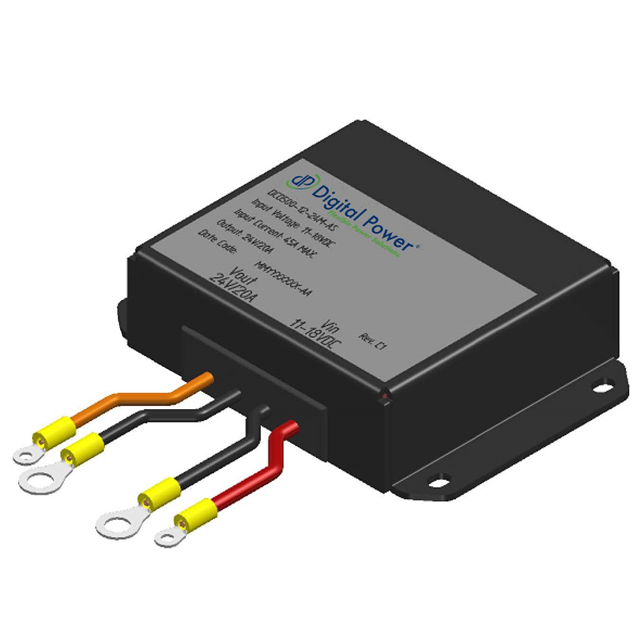

DPCD500
ActiveDigital Power Corporation
DC/DC CONVERTER 24V 480W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DPCD500
ActiveDigital Power Corporation
DC/DC CONVERTER 24V 480W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DPCD500 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 20 A |
| Efficiency | 96 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 480 W |
| Size / Dimension [x] | 149 mm |
| Size / Dimension [x] | 5.87 in |
| Size / Dimension [y] | 4.69 in |
| Size / Dimension [y] | 119 mm |
| Size / Dimension [z] | 1.06 in |
| Size / Dimension [z] | 27 mm |
| Type | Enclosed |
| Voltage - Input (Max) [Max] | 20 V |
| Voltage - Input (Min) [Min] | 10 VDC |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DPCD500
Enclosed DC DC Converter 1 Output 24V 20A 20V Input
