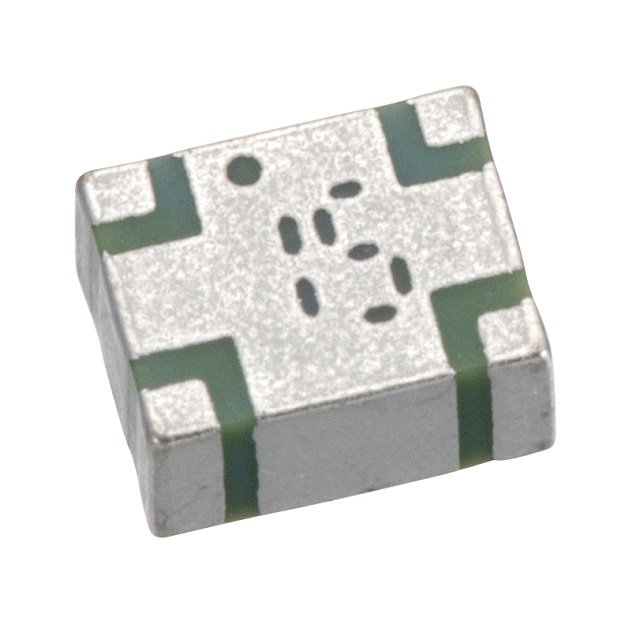

HMD6715D-HYB4500
ActiveSOSHIN ELECTRIC CO., LTD.
RF HYBRID COUPLER GENERAL PURPOS
Deep-Dive with AI
Search across all available documentation for this part.
HMD6715D-HYB4500
ActiveSOSHIN ELECTRIC CO., LTD.
RF HYBRID COUPLER GENERAL PURPOS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HMD6715D-HYB4500 |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Frequency [Max] | 5.5 GHz |
| Frequency [Min] | 3.2 GHz |
| Insertion Loss | 0.23 dB |
| Isolation | 28.9 dB |
| Package / Case | 5 Leads |
| Package / Case | 1210 |
| Package / Case | 3225 Metric |
| Supplier Device Package | 1210 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.91 | |
| 10 | $ 3.19 | |||
| 25 | $ 2.94 | |||
| 50 | $ 2.76 | |||
| 100 | $ 2.60 | |||
| 250 | $ 2.40 | |||
| Digi-Reel® | 1 | $ 3.91 | ||
| 10 | $ 3.19 | |||
| 25 | $ 2.94 | |||
| 50 | $ 2.76 | |||
| 100 | $ 2.60 | |||
| 250 | $ 2.40 | |||
| Tape & Reel (TR) | 500 | $ 2.26 | ||
| 1000 | $ 2.12 | |||
| 1500 | $ 2.05 | |||
| 2500 | $ 1.96 | |||
| 3500 | $ 1.95 | |||
Description
General part information
HMD6715D-HYB4500
RF Directional Coupler General Purpose 3.2GHz ~ 5.5GHz 1210 (3225 Metric), 5 PC Pad
