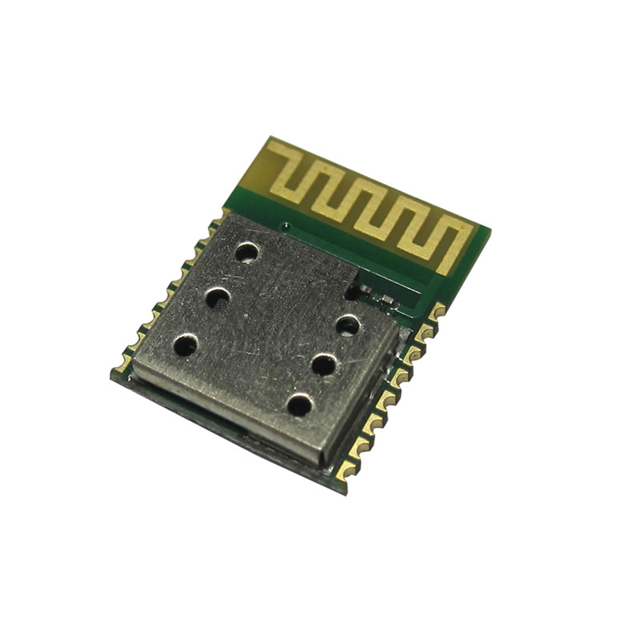

RC-CC2640-B
ActiveRadioControlli
RF TXRX MODULE BLUETOOTH SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RC-CC2640-B
ActiveRadioControlli
RF TXRX MODULE BLUETOOTH SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RC-CC2640-B |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Receiving [Max] | 6.1 mA |
| Current - Receiving [Min] | 5.9 mA |
| Current - Transmitting [Max] | 9.1 mA |
| Current - Transmitting [Min] | 6.1 mA |
| Frequency | 2.4 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-SMD Module |
| Power - Output | 5 dBm |
| Protocol | Bluetooth v4.2, Bluetooth v5.0 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -97 dBm |
| Utilized IC / Part | CC2640R2FRSMR |
| Voltage - Supply [Max] | 3.8 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 4 | $ 20.00 | |
| 12 | $ 11.00 | |||
| 20 | $ 9.00 | |||
Description
General part information
RC-CC2640-B
Bluetooth Bluetooth v4.2, Bluetooth v5.0 Transceiver Module 2.4GHz Antenna Not Included Surface Mount
Documents
Technical documentation and resources
