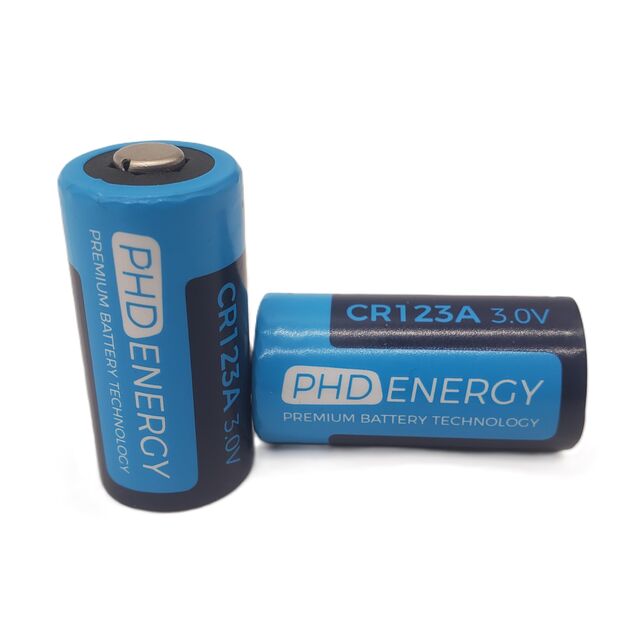

PHD CR123A
ActivePHD Energy
BATTERY LITHIUM 3V CR123A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PHD CR123A |
|---|---|
| Battery Cell Size | CR123A |
| Battery Chemistry | Lithium Manganese Dioxide |
| Capacity | 1.5 Ah |
| Discharge Rate | 20 mA |
| Shipping Info | Due to restrictions, only ground shipment is allowed. |
| Size / Dimension [diameter] | 17 mm |
| Size / Dimension [diameter] | 0.67 in |
| Size / Dimension [z] | 34.5 mm |
| Size / Dimension [z] | 1.36 " |
| Termination Style | Button Top (Extending) |
| Voltage - Rated | 3 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 10 | $ 1.85 | |
| 50 | $ 1.68 | |||
| 100 | $ 1.59 | |||
| 500 | $ 1.49 | |||
Description
General part information
PHD CR123A
CR123A Lithium Manganese Dioxide 3 V Battery Non-Rechargeable (Primary)
