920-0011-01
ActiveSchmartboard, Inc.

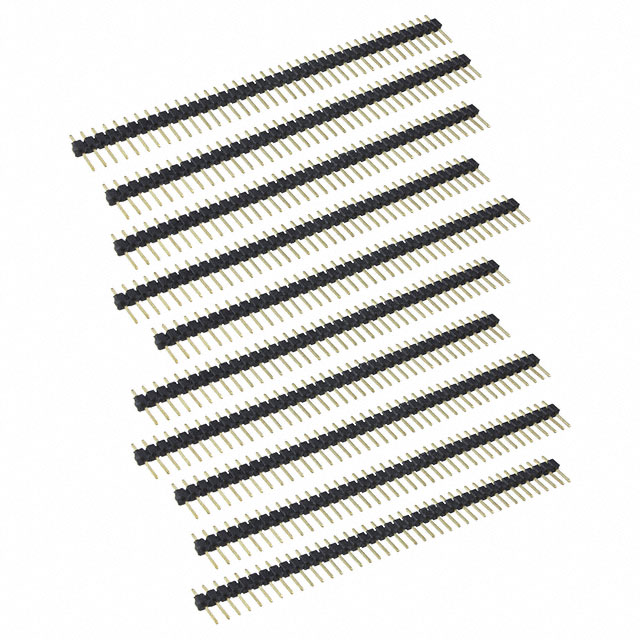

CONN WIRE TO BOARD HDR 40 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
920-0011-01
ActiveSchmartboard, Inc.
CONN WIRE TO BOARD HDR 40 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 920-0011-01 |
|---|---|
| Connector Type | Breakaway, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Length - Mating | 6.1 mm |
| Contact Length - Mating [x] | 0.24 in |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height [z] | 0.098 in |
| Insulation Height [z] | 2.5 mm |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Contact Length | 0.457 " |
| Overall Contact Length | 11.61 mm |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
920-0011-01
Connector Header Through Hole 40 position 0.100" (2.54mm)
