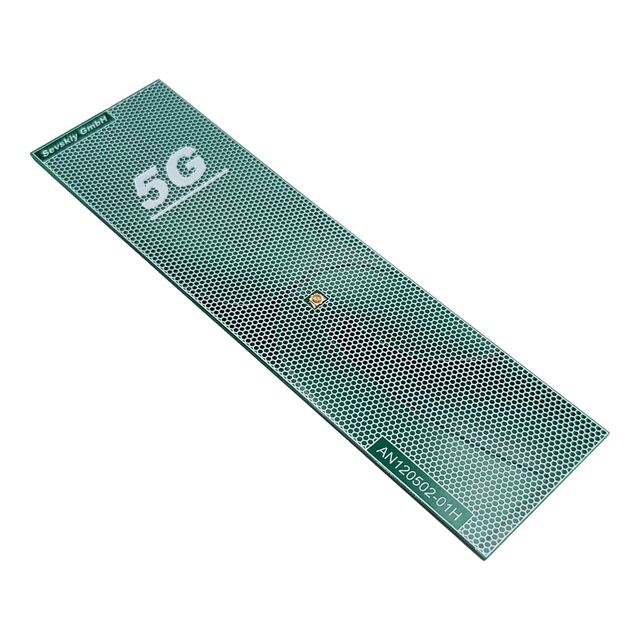

AN120502-01H
ActiveSevskiy GmbH
RF ANT 5G/LTE BROADBAND U.FL.
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AN120502-01H
ActiveSevskiy GmbH
RF ANT 5G/LTE BROADBAND U.FL.
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AN120502-01H |
|---|---|
| Antenna Type | UWB Dipole |
| Applications | 4G, IoT, 5G, WiFi, ISM, Bluetooth, UWB, 3G, Smart Meters |
| Features | 180 mm |
| Features | Cable |
| Frequency (Center/Band) | 830 MHz, 4.276 GHz |
| Frequency Group | Ultra Wide Band |
| Frequency Range [Max] | 7.125 GHz, 960 MHz |
| Frequency Range [Min] | 1.427 GHz, 700 MHz |
| Gain | 1.9 dBi, 2.8 dBi |
| Height (Max) | 0.8 mm |
| Height (Max) [Max] | 0.031 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 2 |
| Power - Max [Max] | 10 W |
| Return Loss | -10 dB, -7 dB |
| RF Family/Standard | Ultra Wide Band |
| Termination | I-PEX MHF1, U.FL (UMCC) |
| VSWR | 1.93, 2.62 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.09 | |
| 10 | $ 4.90 | |||
| 50 | $ 4.71 | |||
| 100 | $ 4.53 | |||
| 500 | $ 4.36 | |||
| 1000 | $ 4.19 | |||
| 5000 | $ 4.03 | |||
| 10000 | $ 3.88 | |||
| 50000 | $ 3.73 | |||
Description
General part information
AN120502-01H
RF ANTENNA 3G, 4G, 5G, Bluetooth, IoT, ISM, WiFi, UWB, Smart Meters UWB Dipole U.FL (UMCC), I-PEX MHF1 Bracket Mount
