SAMA7G54D2GT-I/4UB
Active1GHZ ARM CORTEX A7 W/ MIPI CAMERA AND 2GB INTEGRATED DDR3L
Deep-Dive with AI
Search across all available documentation for this part.
SAMA7G54D2GT-I/4UB
Active1GHZ ARM CORTEX A7 W/ MIPI CAMERA AND 2GB INTEGRATED DDR3L
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SAMA7G54D2GT-I/4UB |
|---|---|
| Additional Interfaces | EBI, SPI, I2C |
| Co-Processors/DSP | Multimedia, NEON™ MPE |
| Core Processor | ARM® Cortex®-A7 |
| Ethernet | 10/100Mbps (1), 10/100/1000Mbps (1) |
| Graphics Acceleration | False |
| Mounting Type | Surface Mount |
| Number of Cores/Bus Width | 32 Bit, 1 Core |
| Operating Temperature [custom] | -40 °C, 105 °C |

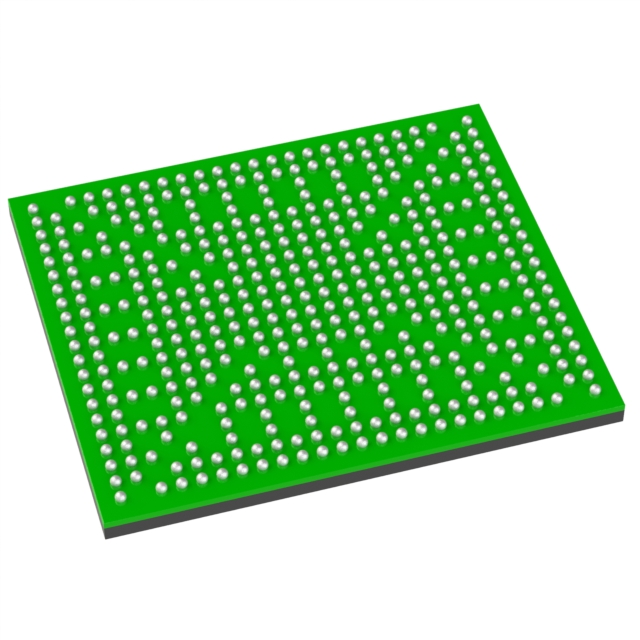

| Package / Case | 427-TFBGA |
| RAM Controllers | LPDDR3, DDR2, DDR3, LPDDR2, DDR3L |
| Security Features | SHA-384, Cryptography, AES, SHA1, 3DES, SHA-512, ARM TZ, SHA-256 |
| Speed | 1 GHz |
| Supplier Device Package | 427-TFBGA (21x18) |
| USB | USB (3) |
| Voltage - I/O | 1.35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 31.45 | |
| 25 | $ 28.84 | |||
| 100 | $ 26.11 | |||
| Digi-Reel® | 1 | $ 31.45 | ||
| 25 | $ 28.84 | |||
| 100 | $ 26.11 | |||
| Tape & Reel (TR) | 1000 | $ 26.11 | ||
| Microchip Direct | T/R | 1 | $ 31.03 | |
| 25 | $ 25.86 | |||
| 100 | $ 23.51 | |||
| 1000 | $ 21.03 | |||
| 5000 | $ 20.39 | |||
Description
General part information
SAMA7G54D2GT-I/4UB
The SAMA7G54D2G SIP is a high-performance, Arm Cortex-A7 CPU-based embedded microprocessor (MPU) running up to 1 GHz with 2 Gbit integrated DDR3L SDRAM. The SAMA7G54D2G support flexible boot options from octal/quad SPI, SD/eMMC as well as 8-bit SLC/MLC NAND Flash.
The SAMA7G54D2G integrates complete imaging and audio subsystems with 12-bit parallel and/or MIPI-CSI2 camera interfaces supporting up to 8 Mpixels and 720p @ 60 fps, up to four I2S, one SPDIF transmitter and receiver and a 4-stereo channel audio sample rate converter.
The SAMA7G54D2G also feature a large number of connectivity options including Dual Ethernet (one Gigabit Ethernet and one 10/100 Ethernet), six CAN-FD and three high-speed USB. Advanced security functions like secure boot, secure key storage, high-performance crypto accelerators for AES, SHA, RSA and ECC are also supported.
