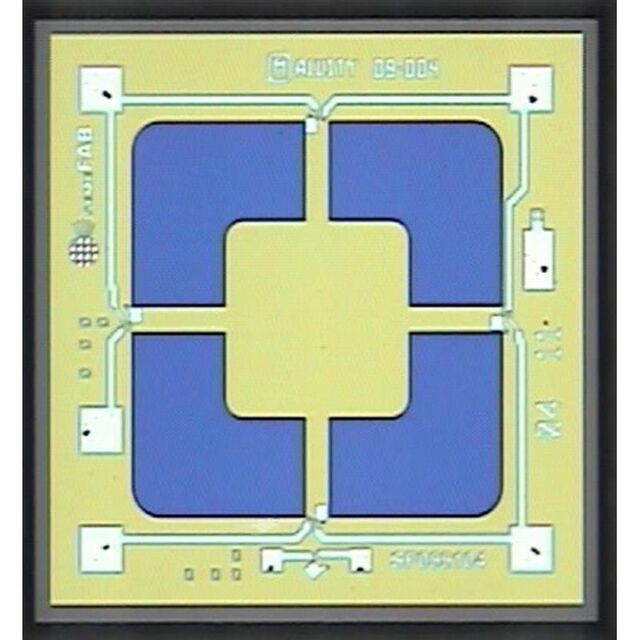

AC3010-015A
ActiveAngst+Pfister Sensors and Power AG
PRESSURE DIE 15 PSIA 10PCS/BOX
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AC3010-015A
ActiveAngst+Pfister Sensors and Power AG
PRESSURE DIE 15 PSIA 10PCS/BOX
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AC3010-015A |
|---|---|
| Accuracy | 1 % |
| Applications | Board Mount |
| Maximum Pressure | 517.11 kPa |
| Maximum Pressure | 75 PSI |
| Operating Pressure [custom] | 15 PSI |
| Operating Pressure [custom] | 103.42 kPa |
| Operating Temperature [Max] | 135 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 125 mV |
| Output [Min] | 0 mV |
| Output Type | Wheatstone Bridge |
| Package / Case | Die |
| Port Style | No Port |
| Supplier Device Package | Die |
| Termination Style | SMD (SMT) Tab |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 350.00 | |
Description
General part information
AC3010-015A
Pressure Sensor 15PSI (103.42kPa) Absolute 0 mV ~ 125 mV Die
Documents
Technical documentation and resources
